8869810000

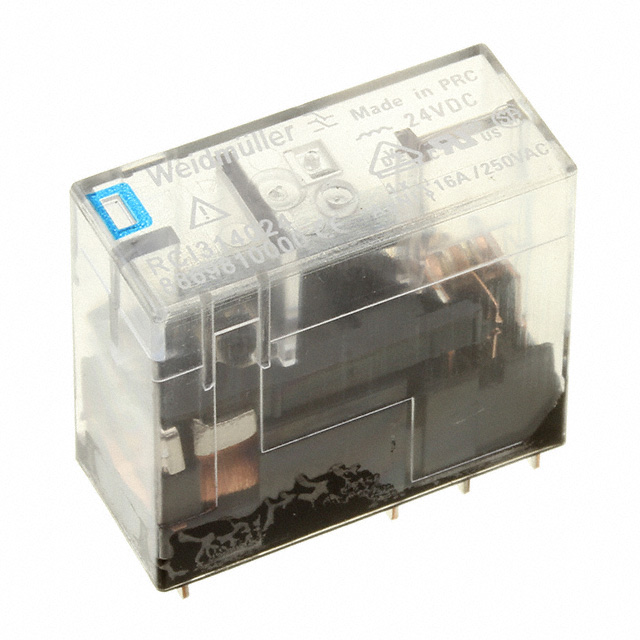

8869810000 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Weidmüller. Its product description is RELAY GEN PURPOSE SPDT 16A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 8869810000

• Description：RELAY GEN PURPOSE SPDT 16A 24V
• Series：RCI
• Mfr：Weidmüller
• Package：Bulk,Bulk
• Mounting Type：Through Hole
• Coil Voltage：24VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：16 A
• Switching Voltage：250VAC - Max
• Load - Max Switching：4000VA
• Coil Current：16.7 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：16.8 VDC
• Must Release Voltage：2.4 VDC
• Operating Temperature：-40°C ~ 70°C
• Contact Material：Silver Nickel (AgNi)
• Approval Agency：CSA, cULus, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：8 ms
• Release Time：6 ms

Power Relays, Over 2 Amps datasheet and documents for 8869810000
