887-016-555-807

Edgeboard Connectors Overview

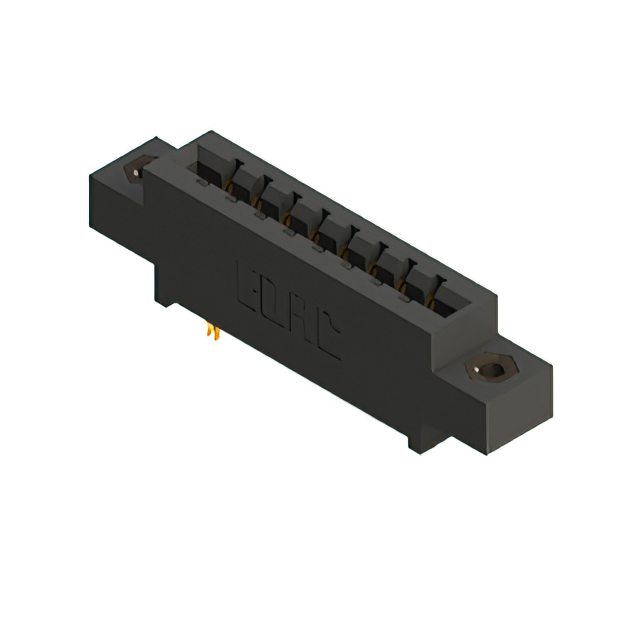

The EDAC Inc. 887-016-555-807 is a high-temperature card edge connector from the 887 series, designed for robust industrial and medical applications. It features a dual-edge female configuration with 16 positions arranged in two rows. The connector utilizes a 0.156-inch (3.96 mm) pitch and a 0.200-inch (5.08 mm) row spacing. Constructed with a black PPS insulator and gold-plated copper alloy contacts, it supports surface mount terminals. The unit is rated for an operating temperature range of -40°C to +125°C and meets UL certification standards.

Edgeboard Connectors Feature Summary

• High-temperature resistant design utilizing PPS insulator material for stability in harsh environments
• Dual-edge female contact configuration ensuring reliable signal transmission
• Gold-plated copper alloy terminals providing low contact impedance and corrosion resistance
• Surface mount terminal style facilitating automated PCB assembly processes

Edgeboard Connectors Applications

• Medical interconnect solutions requiring high thermal stability
• Agricultural technology equipment exposed to harsh environmental conditions
• Industrial control systems demanding durable card edge connections
• Communication infrastructure components

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm terminal style and mounting options. Ensure compatibility with the target PCB thickness and panel mount requirements. Cross-reference the RoHS compliance status with the latest manufacturer datasheet before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance and dual-edge connectivity are required. The 0.156-inch pitch suits standard board designs, while the surface mount option aids in manufacturing efficiency. Confirm that the 16-position count aligns with the circuit interface needs and that the black PPS housing meets aesthetic or regulatory specifications.

Edgeboard Connectors Part Context

This part belongs to the EDAC 887 series, specialized for high-temperature card edge applications. The series offers various positioning and terminal configurations within a consistent 0.156-inch pitch framework. It complements other EDAC interconnect solutions by providing durable options for sectors like medical and agricultural technology where reliability under thermal stress is critical.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for equivalent parts within the 887 series. Verify pin counts, pitch dimensions, and terminal styles to ensure mechanical and electrical compatibility. Generic substitutes may not match the specific high-temperature ratings or UL certifications of the original component.
