887-036-524-804

Edgeboard Connectors Overview

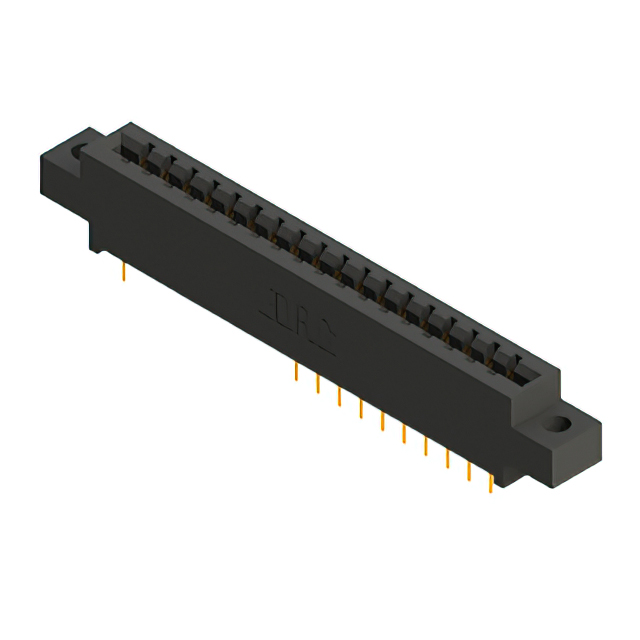

The EDAC 887-036-524-804 is a high-temperature card edge connector receptacle featuring 36 positions in a dual-row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing with a 5.08 mm (0.200 inch) row pitch, designed for nominal 1.57 mm (0.062 inch) PCB thickness. The unit employs gold-plated copper alloy contacts and a polyphenylene sulfide (PPS) insulator body rated UL 94V-0. Rated at 3 A with a maximum contact impedance of 10 mΩ, it supports operating temperatures from -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature PPS insulator construction
• Gold-plated copper alloy contacts
• Dual-row vertical panel mount design

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Medical devices
• Energy infrastructure

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and mounting options. Ensure compatibility with the target PCB thickness of 1.57 mm. Confirm that the 3 A current rating and 125°C thermal limit meet the operational requirements of the intended application environment before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this component when high-temperature stability is required, as indicated by the PPS material and 125°C rating. The dual-row layout accommodates 36 signals within a compact footprint defined by the 3.96 mm pitch. Verify that the panel mount installation style aligns with the mechanical assembly constraints and that the vertical orientation fits the available spatial clearance.

Edgeboard Connectors Part Context

This part belongs to the EDAC 887 series, which specializes in high-temperature card edge connectors. The series offers various termination styles and mounting options, including offset or flush ears. The 887 series is distinguished by its robust PPS insulator and suitability for demanding environments where standard materials might degrade.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 887 series variants for alternative termination types such as wire hole or winding styles. Verify that any substitute maintains the 3.96 mm pitch and 1.57 mm board thickness compatibility. Check if different mounting ear configurations are required for the specific panel cutout.
