892-020-523-107

Edgeboard Connectors Overview

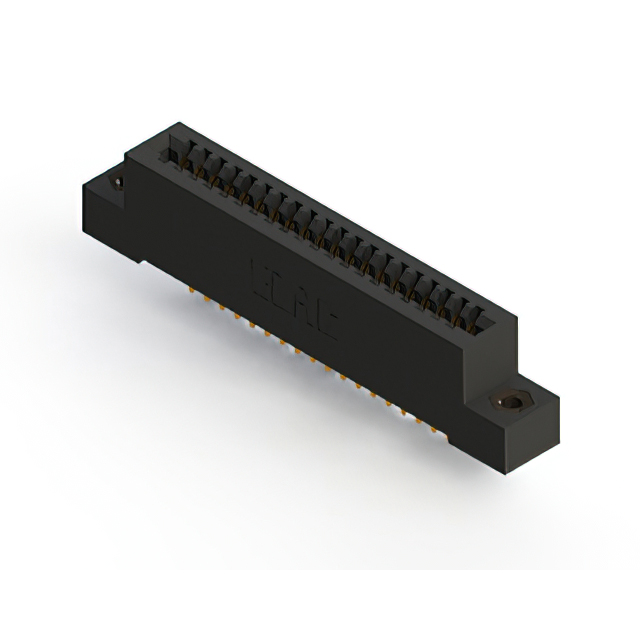

The EDAC Inc. 892-020-523-107 is a standard card edge connector receptacle featuring 20 positions in a single row with a 2.54 mm (0.100 inch) contact spacing. Designed for panel mount vertical installation, it accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. The housing utilizes polyphenylene sulfide (PPS) material, providing high-temperature resistance suitable for demanding environments.

Edgeboard Connectors Feature Summary

• High-profile insulator body designed for robust mechanical stability
• Gold-plated copper alloy contacts ensure durable electrical connectivity
• Polyphenylene sulfide (PPS) housing provides high thermal resistance

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Medical equipment interconnect solutions
• Agricultural technology hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, termination style, and flange configuration. Ensure the selected variant matches the required board thickness and mounting orientation for your specific design implementation.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical panel-mount interface is required for 0.062-inch thick boards. Confirm that the 2.54 mm pitch aligns with the target PCB layout and that the PPS housing temperature rating meets the operational environmental requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 892 series of high-temperature card edge connectors. The series is characterized by its use of PPS insulation and gold-plated contacts, targeting applications in medical, industrial, and agricultural sectors where durability and thermal performance are critical specifications.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 892 Series Ordering Guide for direct substitutes with different position counts or termination styles. Verify compatibility regarding board thickness and mounting hardware before substituting.
