895-023-558-612

Edgeboard Connectors Overview

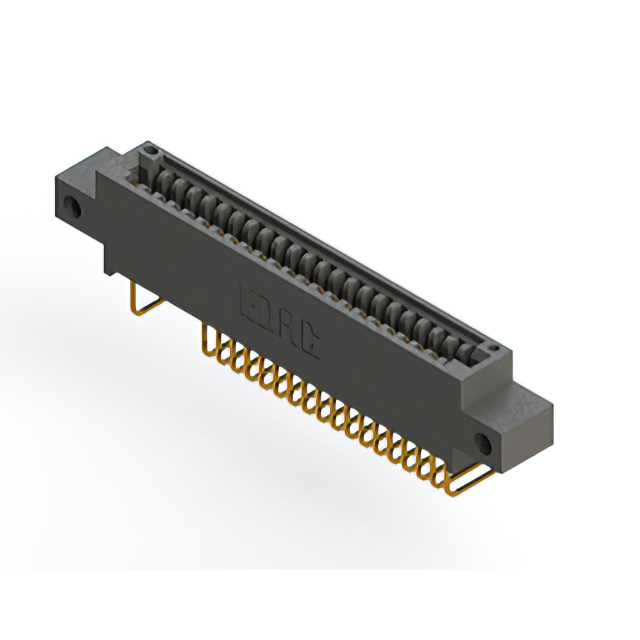

The EDAC Inc. 895-023-558-612 is a standard card edge connector receptacle featuring 23 positions with a 0.100 inch (2.54 mm) pitch. Designed for single-row female connections, it utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide housing. The component supports a current rating of 3 A and operates within a temperature range of -40 C to +125 C. It employs solder pin termination and is intended for panel mount installation.

Edgeboard Connectors Feature Summary

• Single row female configuration for card edge insertion
• Gold-plated copper alloy contact surfaces
• Polyphenylene sulfide insulator material

Edgeboard Connectors Applications

• Standard card edge interconnection systems
• Panel mounted electronic assemblies
• General purpose circuit board interfaces

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm exact physical dimensions and mating requirements. Ensure that the selected connector aligns with the target PCB card thickness specifications. Cross-reference the terminal type and mounting style with the design schematic before procurement to guarantee mechanical compatibility.

Edgeboard Connectors Selection Notes

Select this component when a single-row female connector with a 2.54 mm pitch is required for panel-mounted applications. Consider the 3 A current rating and PPS housing material for environmental suitability. Verify that the gold plating meets the necessary conductivity standards for the intended signal or power transmission requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series typically features polyphenylene sulfide insulation and gold-plated contacts. These connectors are designed for reliable electrical connections in various industrial and commercial electronic applications requiring durable card edge interfaces.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Generic equivalents may not match the precise pitch, housing material, or contact plating specifications required for proper function.
