Edgeboard Connectors Overview

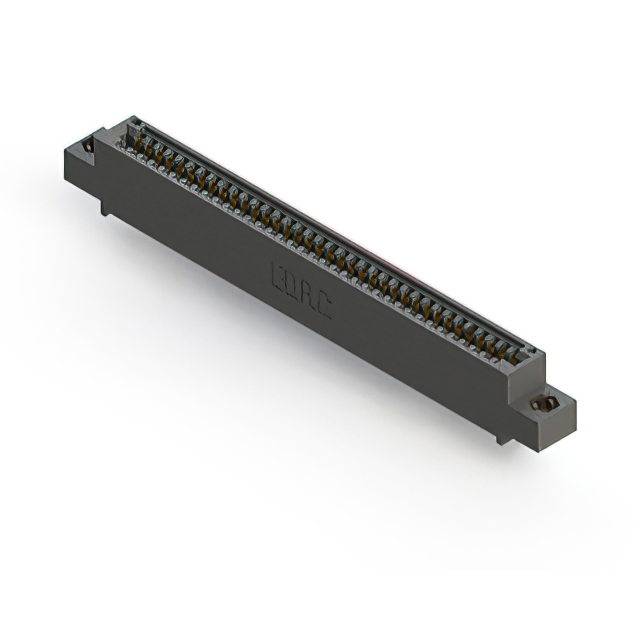

The EDAC Inc. 895-036-542-407 is a high-temperature card edge connector from the 895 series, designed for reliable signal transmission in demanding environments. It features a dual-row configuration with 36 positions and a 0.100" (2.54mm) contact spacing. The connector utilizes gold-plated copper alloy contacts with a 10.0µin thickness to ensure low contact resistance and durability. It accepts printed circuit boards with a nominal thickness of 0.062" (1.57mm). The unit employs a vertical panel mount installation style with wire wrap termination, providing secure mechanical attachment and electrical connectivity.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for elevated thermal conditions
• Gold-plated contacts ensure reliable conductivity and corrosion resistance
• Vertical panel mount design facilitates structured board integration
• Wire wrap termination provides robust mechanical and electrical connections

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature stability
• Communication equipment interfaces
• Medical device internal connections
• Energy sector instrumentation panels

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 36-position configuration and wire wrap termination type. Confirm compliance with RoHS3 and REACH regulations as specified by the manufacturer. Ensure the receiving facility has appropriate handling procedures for sensitive electronic components. Cross-reference the datasheet for exact dimensional tolerances before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel mount solution with wire wrap termination is required. The 0.100" pitch and 36-position count define the interface density. Consider the high-temperature rating if the operating environment exceeds standard commercial limits. Verify that the PCB thickness aligns with the 0.062" nominal specification for proper insertion and retention.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 895 Series, which specializes in high-temperature card edge connectors. The series is characterized by black insulators made from PPS material, offering stability under thermal stress. The 895 series supports various position counts and row configurations, catering to diverse industrial and communication applications where reliability under heat is critical.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 36-position count, 0.100" pitch, vertical orientation, and wire wrap termination style.
