Product Detailed Parameters
- Description：LED GRN-YLW CLEAR YOKE LEAD SMD
- Series：-
- Mfr：Everlight Electronics Co Ltd
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green-Yellow
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：12mcd
- Lens Style：Round with Domed Top
- Lens Size：1.90mm Dia
- Voltage - Forward (Vf) (Typ)：2V
- Current - Test：20mA
- Viewing Angle：25°
- Mounting Type：Surface Mount
- Wavelength - Dominant：573nm
- Wavelength - Peak：575nm
- Features：-
- Package / Case：2-SMD, Yoke Bend
- Supplier Device Package：Yoke Lead
- Size / Dimension：2.10mm L x 2.00mm W
- Height (Max)：2.90mm
Download product information
Overview

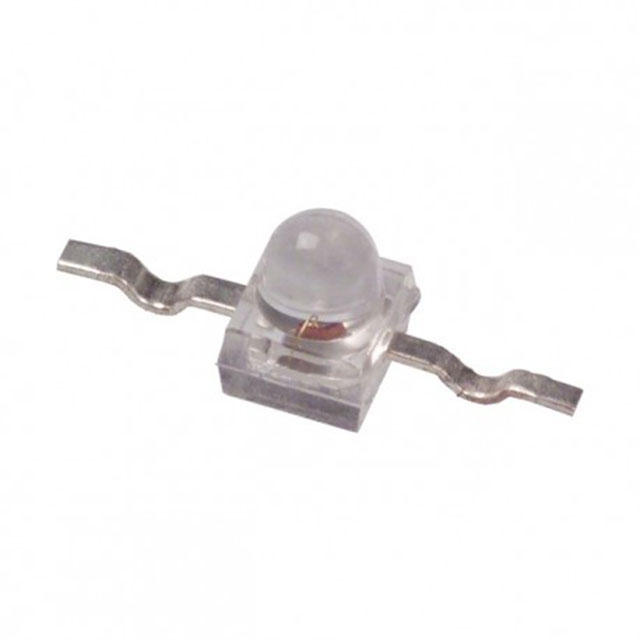

The 95-21SYGC/S530-E1/S12/TR9 is a single-color green-yellow surface-mount LED manufactured by Everlight Electronics. It features a yoke lead package with dimensions of 2.10mm length, 2.00mm width, and a maximum height of 2.90mm. The component emits light at a peak wavelength of 575nm with a typical forward voltage of 2V at a test current of 20mA. It offers a viewing angle of 25 degrees and an optical intensity of 12mcd. The lens is colorless and water clear, designed for standard indicator applications.
Feature Summary
- Utilizes a yoke lead SMD package structure for secure mounting
- Features a water-clear dome lens for consistent light transmission
- Provides high-intensity green-yellow emission suitable for visual signaling
Applications
- Electronic equipment status indicators
- Control panel signal lights
- Instrumentation front panels
Procurement Notes
Verify the specific suffix S12 to confirm the yoke lead configuration, as standard variants may differ in package style. Ensure compatibility with RoHS3 standards and MSL level 4 handling requirements during storage and assembly processes. Confirm availability constraints due to potential supply limitations.
Selection Notes
Select this component when a distinct green-yellow hue is required for high-visibility indication. The 25-degree viewing angle focuses light output effectively for direct-line-of-sight applications. Consider the yoke lead design if enhanced mechanical stability or specific board layout constraints are necessary compared to standard gull-wing packages.
Part Context
This part belongs to Everlight's single-color LED series, specifically engineered for surface-mount technology. It represents a specialized variant within the 95-21 family, distinguished by its unique yoke lead construction and specific optical characteristics tailored for industrial and consumer electronics signaling needs.
Replacement Considerations
Direct substitutes must match the 2-SMD yoke lead package and 575nm wavelength. Verify equivalent forward voltage and luminous intensity to ensure circuit compatibility without modification.
