9HT11-32.768KAZF-T

Crystals Overview

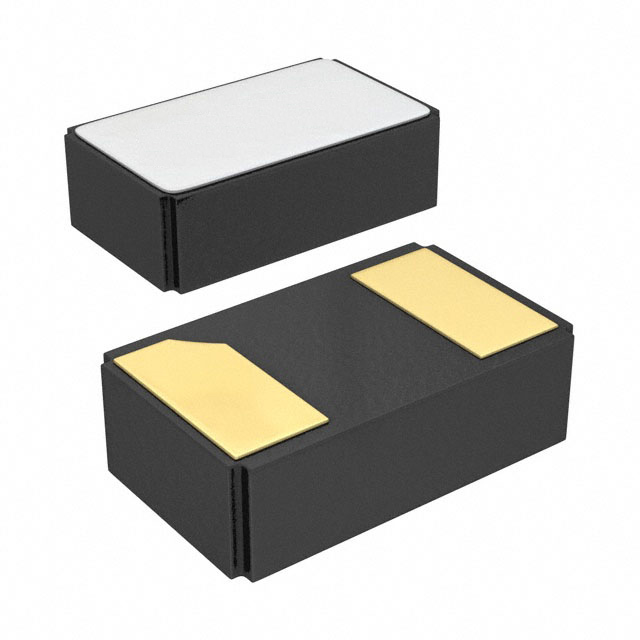

The TXC CORPORATION 9HT11-32.768KAZF-T is a surface-mount quartz crystal designed for precise timing applications. It operates at a nominal frequency of 32.768 kHz with a frequency tolerance of ±20 ppm. The component features a load capacitance of 12.5 pF and an equivalent series resistance (ESR) of 90 kOhms. It utilizes a tuning fork mode of operation and is housed in a compact 2-SMD, no-lead package measuring 3.20mm x 1.50mm with a maximum height of 0.85mm. The device supports a wide operating temperature range from -40°C to +85°C and complies with RoHS3 standards.

Crystals Feature Summary

• Provides stable frequency output suitable for low-power embedded designs
• Compact surface-mount footprint optimized for space-constrained mobile and notebook applications
• Industrial-grade reliability with wide temperature operational capability

Crystals Applications

• Mobile phone timing circuits
• Notebook computer real-time clocks
• Digital still camera (DSC) synchronization

Crystals Procurement Notes

Verify the specific suffix 'ZF' against the manufacturer's official datasheet to confirm the exact frequency tolerance and ESR specifications. Ensure the selected variant matches the required load capacitance and package dimensions for your PCB layout. Cross-reference the part number with current availability status as manufacturing statuses may change.

Crystals Selection Notes

Select this component when a 32.768 kHz reference with ±20 ppm accuracy is required for portable electronics. Consider the 90 kOhm ESR value for oscillator circuit stability. The 2-SMD no-lead package facilitates automated assembly. Verify compatibility with the target application's thermal environment and power consumption constraints before finalizing the design.

Crystals Part Context

This part belongs to the 9HT11 series of quartz crystals from TXC Corporation. The series is engineered for high-frequency stability and low power consumption. These components are widely utilized in consumer electronics requiring accurate timekeeping functions. The 9HT11 series represents a standard solution for industrial and commercial timing applications.

Crystals Replacement Considerations

Public confirmed substitutes include 9HT11-32.768KDZC-T from TXC Corporation.
