A1412CHNFSS6

Overview

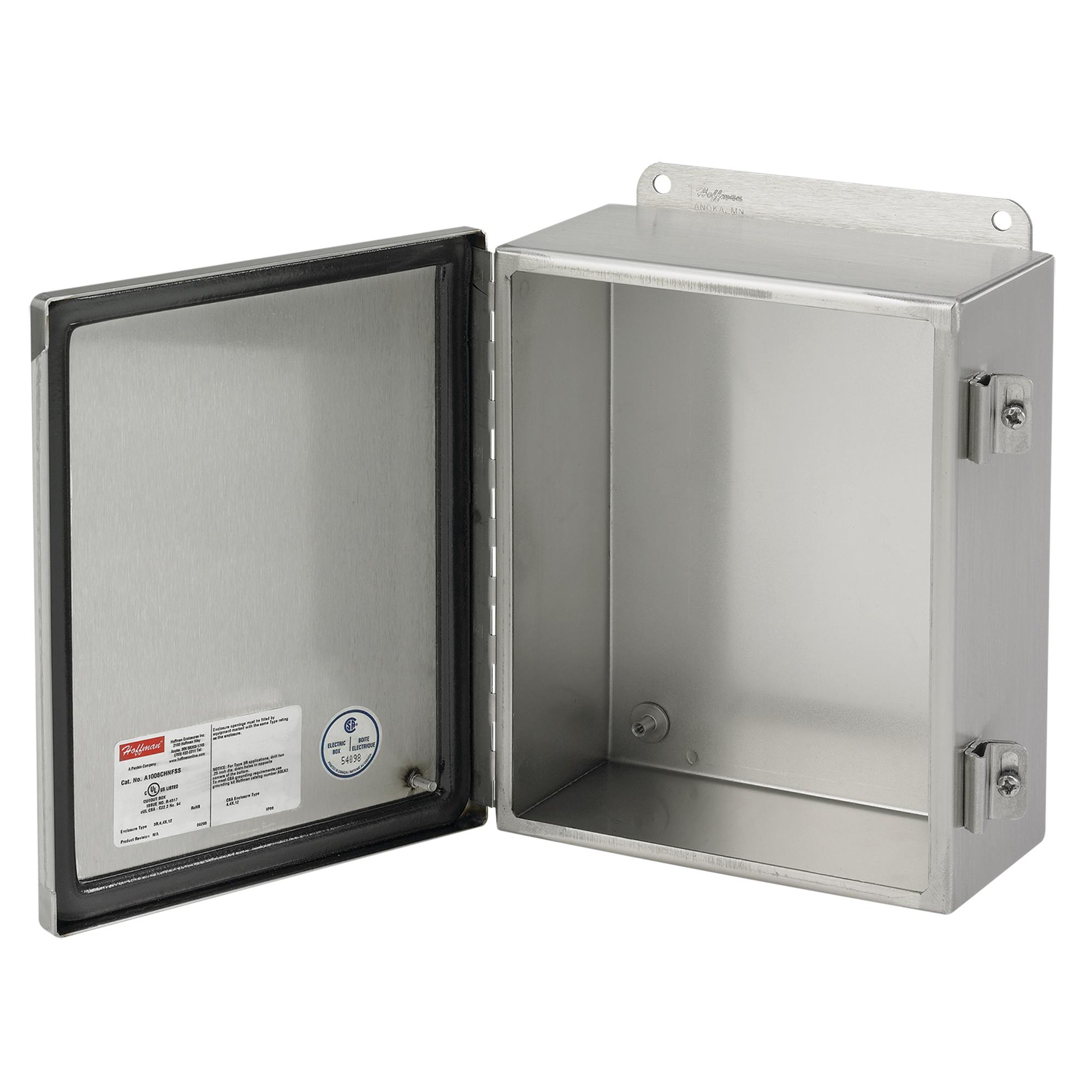

The A1412CHNFSS6 is a stainless steel junction box manufactured by Hoffman Enclosures, Inc. It measures 14 inches in height, 12 inches in width, and 6 inches in depth. The enclosure features a solid cover with a continuous hinge and screw-down clamps. It is constructed from 316L stainless steel with a smooth brushed finish. The unit provides protection ratings of NEMA 12, 3R, 4, and 4X, along with IP66 compliance. It utilizes a seamless foam-in-place gasket for sealing.

Feature Summary

• Constructed from 316L stainless steel with a smooth brushed finish
• Features a solid cover secured by screw-down clamps
• Equipped with a rugged continuous hinge mechanism
• Includes a seamless foam-in-place gasket for environmental sealing

Applications

• Housing motor starters and drives
• Enclosing contactors and PLCs
• Machine tool applications
• Indoor electrical installations
• Outdoor electrical installations

Procurement Notes

Verify the specific material grade and finish requirements against project specifications. Confirm that the NEMA 12, 3R, 4, and 4X ratings align with the intended environmental exposure. Ensure the physical dimensions accommodate the internal components and wiring space. Check for compatibility with existing mounting infrastructure. Validate that the continuous hinge and clamp system meets operational access needs.

Selection Notes

Select this model when high corrosion resistance is required due to the 316L stainless steel construction. Choose this unit for environments demanding NEMA 4X and IP66 protection levels. Consider this option for applications requiring frequent access facilitated by the continuous hinge. Opt for this design where robust mechanical protection via screw-down clamps is necessary. Evaluate the 14x12x6 inch footprint for spatial constraints.

Part Context

This component belongs to the Hoffman Enclosures junction box series designed for industrial electrical protection. The product line emphasizes durability and environmental sealing for harsh conditions. The specific model integrates standard industrial protection ratings with specialized materials. It serves as a protective housing for sensitive control components in various machinery setups.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
