A16N20MPP

Overview

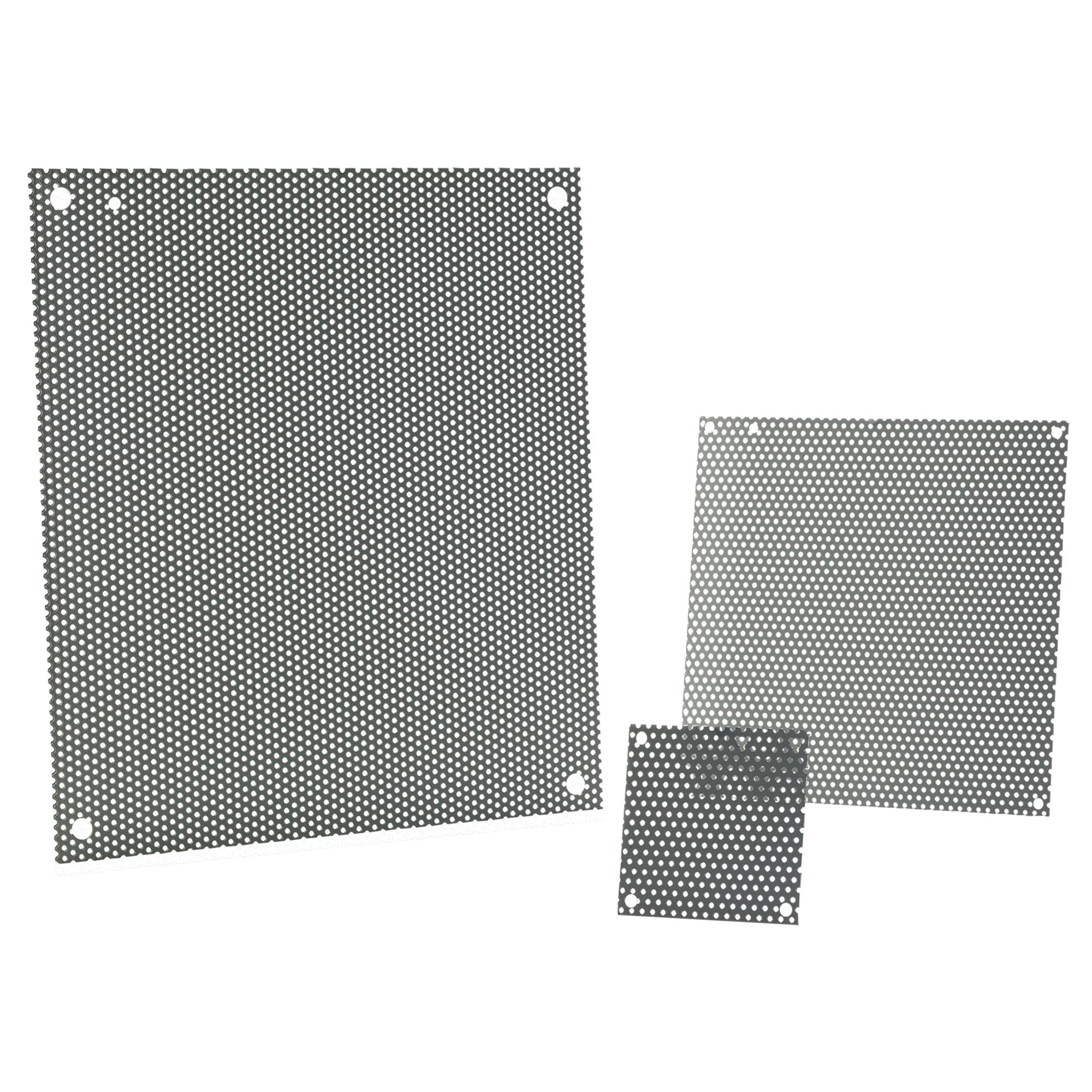

The Hoffman Enclosures A16N20MPP is a perforated mounting panel designed for use with medium Type 1 enclosures. It measures 18-1/2 inches in width and 13 inches in height, providing a surface area of approximately 240 square inches. Constructed from 16-gauge mild steel, the panel features a gray powder-coated finish to resist corrosion and wear. This component serves as an internal structural element, allowing for the secure attachment of electronic modules within compatible NEMA 1 rated enclosure systems.

Feature Summary

• Perforated design facilitates ventilation and cable routing for internal components
• 16-gauge mild steel construction provides robust mechanical support
• Gray powder-coated finish offers environmental protection against corrosion

Applications

• Mounting electronic modules inside medium Type 1 panel enclosures
• Creating organized internal layouts for industrial control panels
• Supporting heat-generating components requiring airflow through perforations

Procurement Notes

Verify that the target enclosure model corresponds to the medium Type 1 series compatible with this specific panel size. Confirm that the 16-gauge steel thickness meets the load requirements for the intended hardware. Ensure the gray powder-coated finish aligns with existing environmental protection standards for the installation site. Cross-reference the 18-1/2 by 13-inch dimensions with the internal cavity constraints of the chosen housing unit.

Selection Notes

Select this panel when a ventilated mounting surface is required for medium-sized Type 1 enclosures. The 16-gauge steel thickness balances durability with weight considerations for standard industrial applications. The perforated pattern supports both thermal management and flexible component placement. Ensure compatibility with the specific enclosure series designated for 16x20 inch footprints.

Part Context

This part belongs to the Hoffman PNLP series of perforated panels. It is specifically engineered to fit medium Type 1 panel enclosures with a 16x20 inch footprint. The series provides standardized internal mounting solutions for various industrial enclosure configurations.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
