A22BAP

Overview

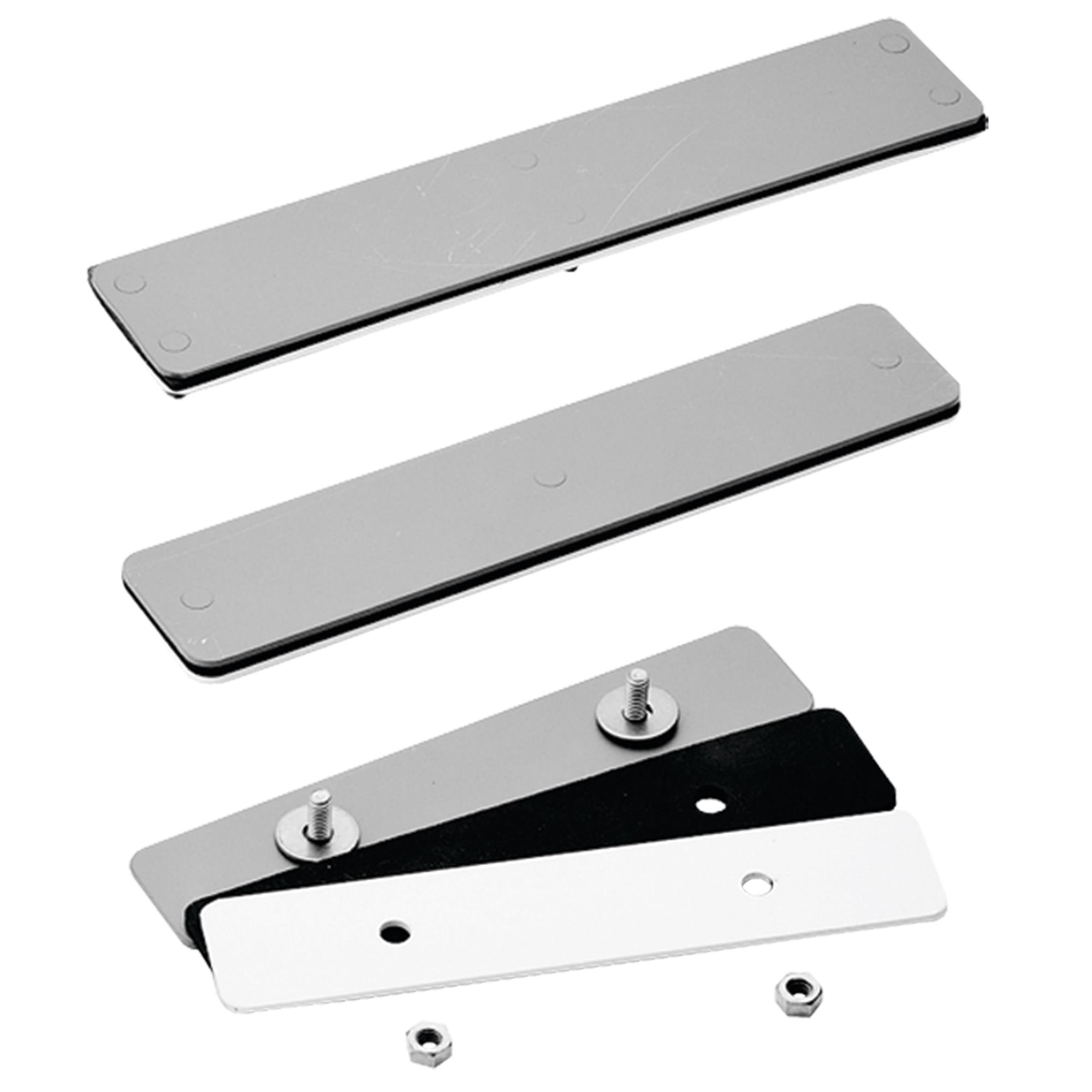

The Hoffman A22BAP is a blank adapter plate constructed from mild steel, designed specifically for use with A22 series disconnect enclosures. It features a gray powder coat finish and measures 9.70 inches in width with a thickness of 2.66 mm. The component includes an oil-resistant gasket to ensure dust-tight and oil-tight sealing capabilities. Mounting hardware is included to facilitate installation. This accessory serves as a disconnect accessory, allowing users to cover flange cutouts when disconnects are not required.

Feature Summary

• Constructed from heavy gauge mild steel for durability
• Includes oil-resistant gasket for dust and oil tight sealing
• Designed to cover flange cutouts in disconnect enclosures
• Comes with necessary mounting hardware for installation

Applications

• Covering unused flange cutouts in A22 disconnect enclosures
• Disconnect enclosure accessories for industrial control panels
• Maintaining environmental seals in NEMA 12/13 rated enclosures

Procurement Notes

Verify compatibility with specific A22 enclosure models before purchase. Confirm that the mild steel construction and gray powder coat finish meet environmental requirements. Ensure the included mounting hardware matches existing installation standards. Check for RoHS compliance if applicable to your project specifications. Review datasheet details for precise dimensional fitment.

Selection Notes

Select this part when needing to seal unused openings in A22 series disconnect enclosures. Consider the mild steel material and oil-resistant gasket for environments requiring dust and oil protection. Verify that the 9.70-inch width aligns with the enclosure's cutout dimensions. Evaluate the need for included mounting hardware versus custom solutions. Ensure the product meets relevant safety and environmental standards for the intended application.

Part Context

This component belongs to the Hoffman A22 series disconnect enclosure accessories. It is part of the ADY series within the nVent Hoffman product line. The A22BAP is specifically engineered to complement A22 and A80 series disconnect enclosures. It supports the modular design of these enclosures by providing customizable sealing options for unused ports.

Replacement Considerations

No public confirmed substitute part numbers are available.
