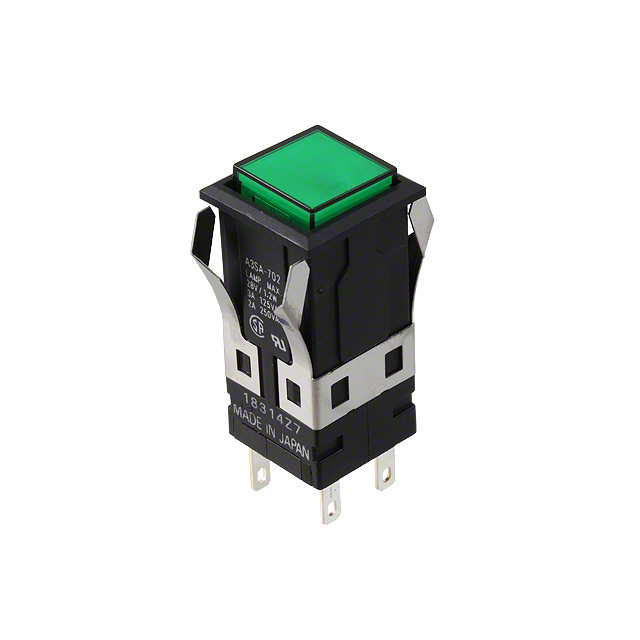

Pushbutton Switches A3SA-90B1-24SG product image

A3SA-90B1-24SG

Description：SWITCH PUSHBUTTON SPDT 3A 125V
Series：A3S
Mfr：Omron Automation and Safety
Package：Bulk

SKU:e98390584817 Category: Pushbutton Switches Brand: Omron Automation and Safety

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

A3SA-90B1-24SG is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is SWITCH PUSHBUTTON SPDT 3A 125V. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for A3SA-90B1-24SG

Description：SWITCH PUSHBUTTON SPDT 3A 125V
Series：A3S
Mfr：Omron Automation and Safety
Package：Bulk
Mounting Type：Panel Mount, Snap-In
Type：Standard, Illuminated
Circuit：SPDT
Switch Function：On-On
Current Rating (Amps)：3A (AC), 2A (DC)
Actuator Type：Square, Button
Actuator Marking：No Marking
Color - Actuator/Cap：Green
Illumination Type, Color：LED, Green
Illumination Voltage (Nominal)：24 VAC/DC
Termination Style：Quick Connect - 0.110" (2.8mm)
Ingress Protection：IP00
Features：-
Panel Cutout Dimensions：Square - 16.20mm x 16.20mm
Operating Temperature：-10°C ~ 50°C
Voltage Rating - DC：30 V
Voltage Rating - AC：125 V

Pushbutton Switches datasheet and documents for A3SA-90B1-24SG
