AA2810ASESK

$0.43

Description：LED ORANGE CLEAR SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:756278222312 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED ORANGE CLEAR SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Orange
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：250mcd
Lens Style：Rectangle with Flat Top
Lens Size：2.30mm x 0.57mm
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：110°
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：601nm
Wavelength - Peak：610nm
Features：-
Package / Case：2-SMD, J-Lead
Supplier Device Package：SMD
Size / Dimension：2.50mm L x 1.20mm W
Height (Max)：0.90mm
Grade：-
Qualification：-

Download product information

AA2810ASESK

Overview

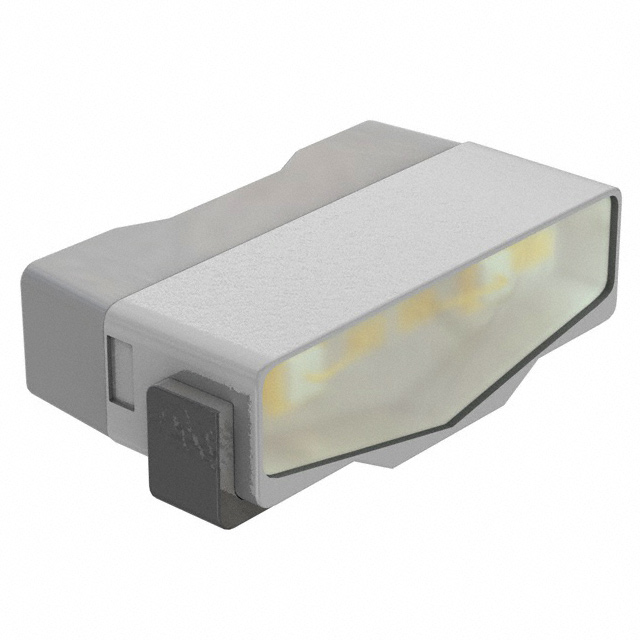

The AA2810ASESK is a single-color orange surface-mount LED manufactured by Kingbright. It features a side-looking configuration with a rectangular lens and water-clear transparency. The device emits light at a peak wavelength of 601 nm with a viewing angle of 110 degrees. Key electrical parameters include a forward voltage of 2.1 V and a forward current rating of 20 mA, resulting in a power dissipation of 75 mW. The optical intensity is rated at 250 mcd. The component measures 2.8 mm in length, 1.2 mm in width, and 0.8 mm in height, designed for SMD/SMT installation.

Feature Summary

Side-looking orientation for directional illumination applications
Water-clear rectangular lens enhances light transmission
Compact 2810 metric package footprint for space-constrained designs

Applications

Panel status indicators
Instrumentation displays
Consumer electronics signaling

Procurement Notes

Verify the specific suffix 'SESK' against the manufacturer's latest datasheet to confirm lens material and binning specifications. Ensure compatibility with standard reflow soldering profiles for moisture-sensitive devices. Cross-reference the Mouser part number 604-AA2810ASESK for accurate distributor identification and documentation access.

Selection Notes

Select this component when a low-profile, side-emitting orange indicator is required. The 110-degree viewing angle provides adequate visibility for panel mounting. Compare against top-emitting variants if direct line-of-sight from above is necessary. Verify thermal management requirements against the 75 mW power rating for continuous operation.

Part Context

This part belongs to Kingbright's AA2810 series of surface-mount LEDs. The series offers various colors and lens configurations within a standardized 2.8 mm x 1.2 mm x 0.8 mm package. It serves as a compact alternative to larger 3528 packages while maintaining reliable performance for general indication purposes.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult Kingbright official documentation for cross-referencing compatible components.
