AA3020AQBC/D

LED Indication - Discrete Overview

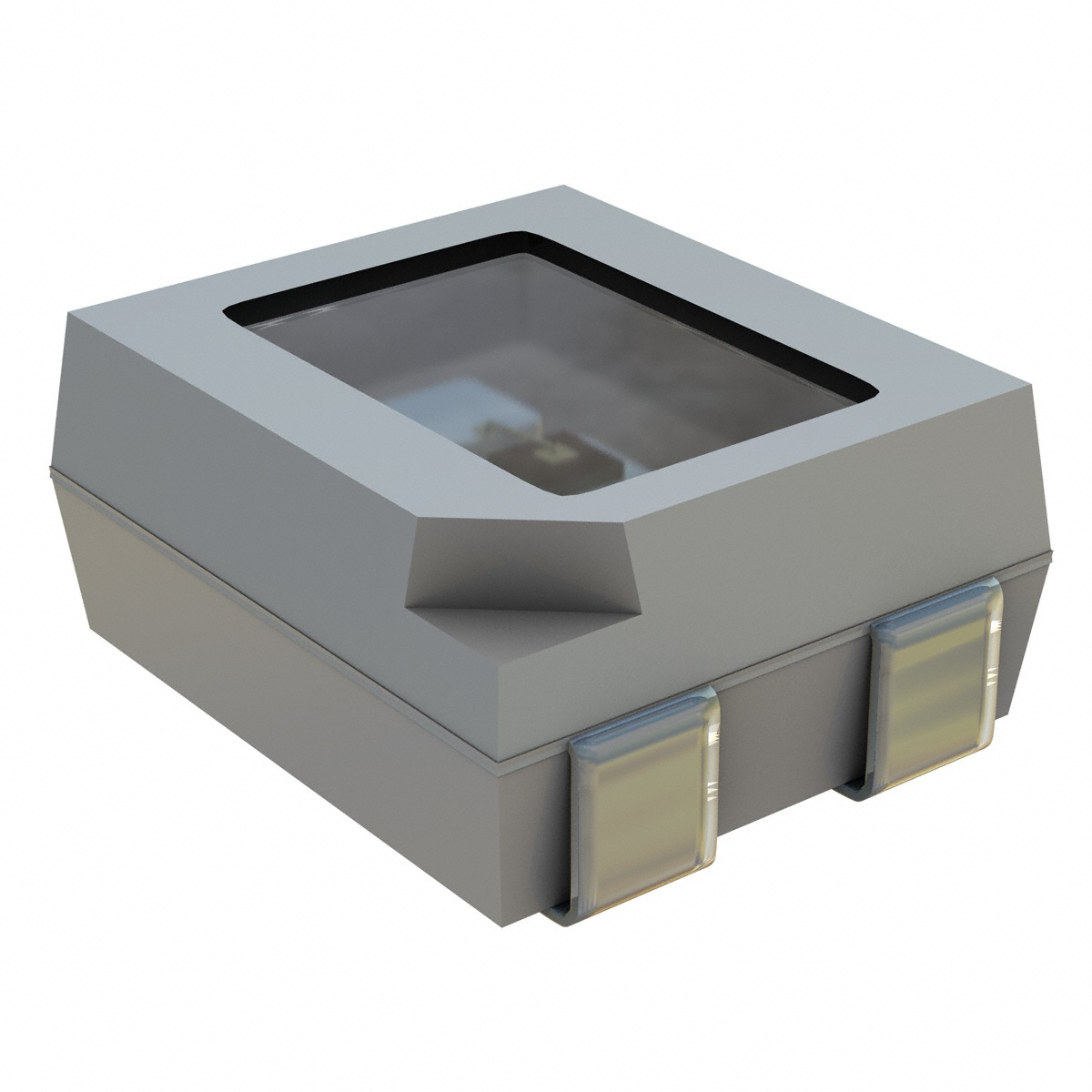

The Kingbright AA3020AQBC/D is a single-color blue surface-mount LED designed for compact optoelectronic applications. It operates at a forward current of 20 mA with a forward voltage of 3.3 V and a power rating of 120 mW. The component emits light at a wavelength of 470 nm, achieving an optical intensity of 230 mcd. It features a water-clear oval lens with dimensions of 2.5 mm by 1.5 mm and a viewing angle of 125 degrees. The package measures 3.0 mm in length, 2.0 mm in width, and 1.3 mm in height. It functions within a temperature range of -40°C to +85°C and carries a moisture sensitivity level of 4.

LED Indication - Discrete Feature Summary

• Energy-efficient operation at 3.3V reduces power consumption and heat generation.
• Water-clear oval lens provides a wide 125-degree viewing angle.
• RoHS compliant construction suitable for compact electronic designs.

LED Indication - Discrete Applications

• Compact optoelectronic devices
• Indicator lamps
• Low-power circuit status displays

LED Indication - Discrete Procurement Notes

Verify the specific suffix D against manufacturer documentation to confirm packaging configuration. Ensure compatibility with moisture sensitivity level 4 handling protocols during storage and assembly. Cross-reference the part number alias KA-3021QBS-D if applicable to your supply chain records. Confirm RoHS compliance status through official Kingbright channels prior to procurement.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a standard blue indicator with a 125-degree viewing angle. The 3.0x2.0mm footprint suits space-constrained printed circuit boards. Consider the 3.3V forward voltage drop when designing drive circuits. Verify thermal management requirements given the 120mW power rating and operating temperature limits.

LED Indication - Discrete Part Context

This model belongs to the Kingbright AA3020 series of surface-mount LEDs. It shares the general 3.0x2.0mm package dimensions with other variants in the family but differs in color, lens shape, and optical characteristics. The series targets low-power indication needs across various consumer and industrial electronics sectors.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Kingbright technical support for direct equivalents or cross-references.
