AA3022SGC-4.5SF

LED Indication - Discrete Overview

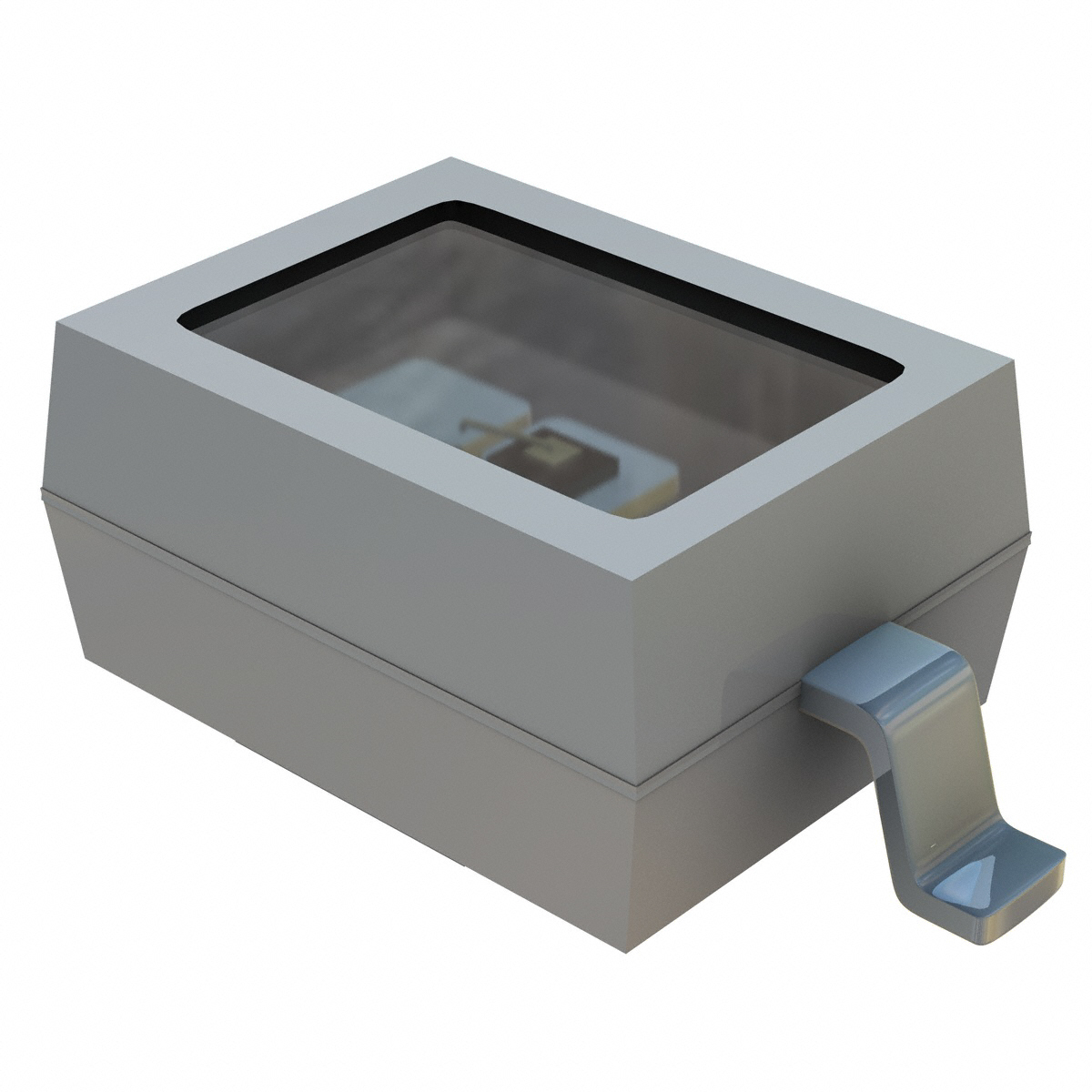

The Kingbright AA3022SGC-4.5SF is a single-color green surface-mount LED housed in a PLCC-2 package with dimensions of 3 mm x 2.2 mm x 1.5 mm. It features a water-clear lens and emits light at a peak wavelength of 568 nm. The component operates with a forward voltage of 2.2 V and a forward current of 20 mA, delivering an optical intensity of 25 mcd. It has a viewing angle of 120 degrees and a power rating of 62.5 mW.

LED Indication - Discrete Feature Summary

• Emits green light with a peak wavelength of 568 nm
• Features a rectangular water-clear lens for high transparency
• Provides a wide 120-degree viewing angle

LED Indication - Discrete Applications

• Indicator lights for electronic devices
• Panel status indicators
• General-purpose signal indication

LED Indication - Discrete Procurement Notes

Verify the specific suffix '4.5SF' against the manufacturer's official datasheet to confirm lead times and packaging quantities. Ensure compliance with RoHS standards as indicated in distributor records. Cross-reference the Mouser part number 604-AA3022SGS-4.5SF if available documentation uses alternative naming conventions.

LED Indication - Discrete Selection Notes

Select this component when a standard green indicator with a 120-degree viewing angle is required. The PLCC-2 package facilitates automated surface-mount assembly. Consider the 2.2 V forward voltage drop for circuit design compatibility. Verify thermal management requirements against the 62.5 mW power rating.

LED Indication - Discrete Part Context

This part belongs to Kingbright's single-color LED portfolio, specifically designed for surface-mount technology applications. It utilizes a standard PLCC-2 form factor common in consumer electronics. The product line emphasizes reliability and consistent optical performance for visual signaling tasks.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
