AA3527AZGSK-30MAV

LED Indication - Discrete Overview

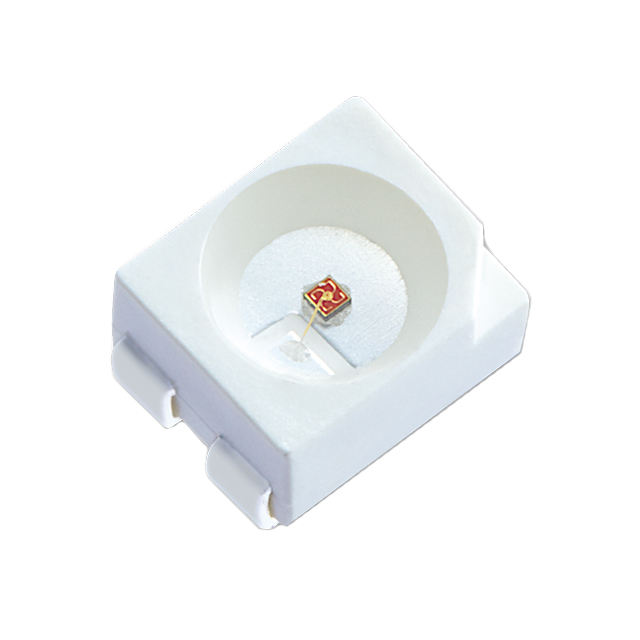

The AA3527AZGSK-30MAV is a single-color green surface-mount LED manufactured by Kingbright. It features a J-leaded 4-SMD package with dimensions of 3.20 mm in length, 2.70 mm in width, and a maximum height of 2.15 mm. The component emits light at a peak wavelength of 515 nm and a dominant wavelength of 525 nm. It operates with a typical forward voltage of 3.5 V at a test current of 30 mA. The optical intensity is rated at 700 mcd, providing a viewing angle of 120 degrees. The lens is colorless and water clear.

LED Indication - Discrete Feature Summary

• Utilizes a compact 3.5 x 2.7 mm SMD form factor with J-shaped leads for reliable surface mounting.
• Provides high-intensity green illumination with a wide 120-degree viewing angle.
• Features a water-clear, round flat lens design to optimize light transmission.

LED Indication - Discrete Applications

• Indicator lights for electronic equipment panels
• Status indication in consumer appliances
• Backlighting for control interfaces

LED Indication - Discrete Procurement Notes

Verify the specific suffix codes against official Kingbright documentation to ensure correct wavelength and binning specifications. Confirm moisture sensitivity level (MSL 3) handling requirements during storage and assembly. Cross-reference the manufacturer part number with distributor databases to validate authenticity and current production status before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a standard green indicator is required for space-constrained designs. The 30 mA drive current suits general signaling applications. Ensure PCB pad layout matches the 4-SMD J-lead footprint dimensions. Consider the 120-degree beam spread if uniform visibility from multiple angles is necessary for the target application.

LED Indication - Discrete Part Context

This device belongs to the AA3527 series of single-color LEDs from Kingbright. The series offers various color options within the same mechanical footprint. The AA3527AZGSK-30MAV specifically denotes the green variant with defined optical characteristics. It is designed for automated pick-and-place assembly processes.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other Kingbright parts sharing the AA3527 base code but differing in color or current rating, such as AA3527ASESK-50MAV for red variants. Verify electrical parameters and thermal dissipation capabilities when cross-referencing with generic 3528-style components from other manufacturers.
