AA3528LSYCKT/J3

Overview

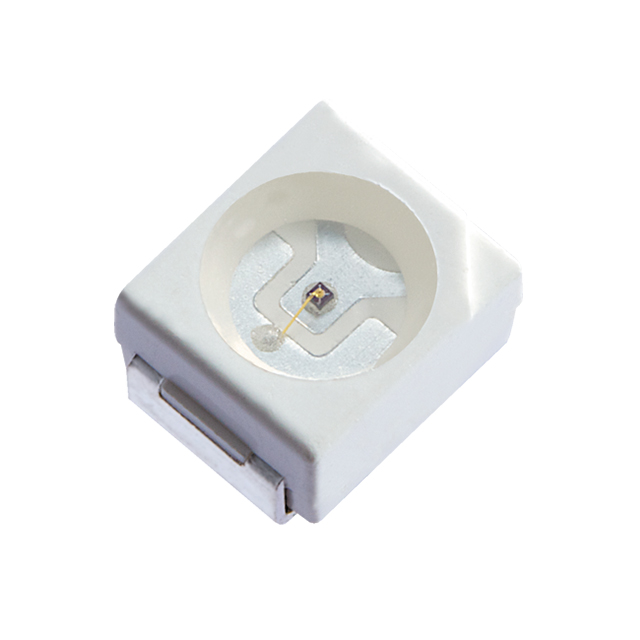

The AA3528LSYCKT/J3 is a single-color yellow surface-mount LED manufactured by Kingbright. It operates at a forward current of 20 mA with a forward voltage of 2 V and a power rating of 125 mW. The component emits light at a wavelength of 590 nm with an optical intensity of 450 mcd. It features a water-clear, round flat lens with a 120-degree viewing angle. The package dimensions are 3.2 mm in length, 2.8 mm in width, and 1.9 mm in height. It functions within a temperature range of -40 C to +85 C.

Feature Summary

• Emits yellow light with high optical intensity for clear visibility
• Features a water-clear lens with a wide 120-degree viewing angle
• Designed for surface-mount technology (SMD/SMT) installation

Applications

• Indicator lights on electronic equipment panels
• Status indication in consumer appliances
• Visual signaling in automotive interior systems

Procurement Notes

Verify the specific suffix J3 against official Kingbright documentation to confirm lead time and packaging details. Ensure compatibility with moisture sensitivity level requirements during storage and handling. Confirm RoHS compliance status through the manufacturer's latest environmental declarations before finalizing procurement orders.

Selection Notes

Select this component when a compact yellow indicator is required for space-constrained designs. The 3528 metric package offers standard footprint compatibility. Consider the 450 mcd intensity for applications requiring moderate brightness without excessive power consumption. Verify thermal management capabilities for operation near the maximum rated temperature.

Part Context

This part belongs to the HELI-R series from Kingbright, which focuses on high-intensity single-color LEDs. The AA3528 series utilizes standard SMD packaging suitable for automated assembly processes. It serves as a visual output component in various optoelectronic circuits, providing reliable signal indication across diverse industrial and commercial environments.

Replacement Considerations

Consult official Kingbright substitution guides for verified alternatives. Generic cross-references may differ in luminous intensity or forward voltage characteristics.
