AA3528LZGCKT

$0.50

Description：LED GREEN CLEAR 2SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:fa1e2e0b3014 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

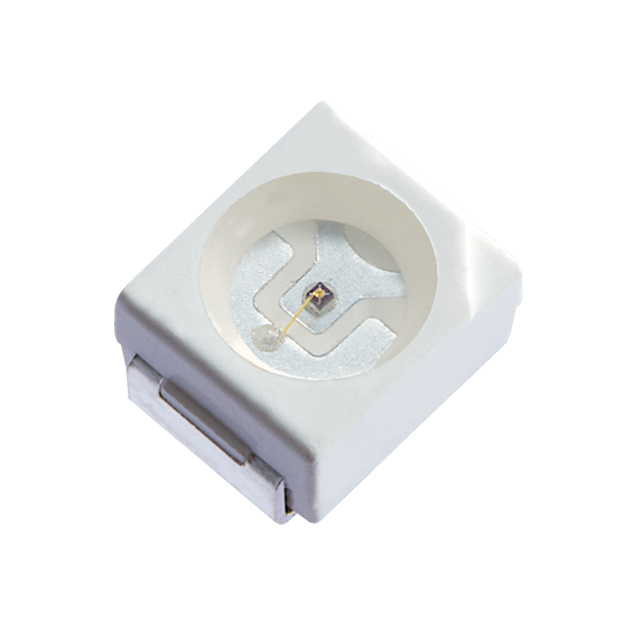

AA3528LZGCKT is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED GREEN CLEAR 2SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AA3528LZGCKT

Description：LED GREEN CLEAR 2SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：90mcd
Lens Style：Round with Flat Top
Lens Size：2.40mm Dia
Voltage - Forward (Vf) (Typ)：2.65V
Current - Test：2mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：525nm
Wavelength - Peak：515nm
Features：-
Package / Case：2-PLCC
Supplier Device Package：2-SMD
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：2.15mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AA3528LZGCKT

AA3528LZGCKT

LED Indication - Discrete Overview

The AA3528LZGCKT is a single-color surface-mount LED manufactured by Kingbright, designed for indicator applications. It utilizes a green light-emitting chip housed within a colorless, water-clear lens featuring a round flat shape. The component measures 3.5 mm in length, 2.8 mm in width, and 1.9 mm in height, conforming to the standard 1411 (3528 metric) package footprint. It operates with a forward current of 20 mA and maintains a viewing angle of 120 degrees. The device functions reliably within an ambient temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

Surface-mount construction compatible with automated SMD/SMT assembly processes
Water-clear lens design providing high transparency for optimal light transmission
Wide 120-degree viewing angle ensuring broad visibility from multiple perspectives

LED Indication - Discrete Applications

Electronic equipment status indicators
Control panel illumination
Appliance operation signals

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against the manufacturer datasheet to ensure correct wavelength and binning specifications. Confirm moisture sensitivity level handling requirements during storage and reflow soldering processes. Cross-reference the exact part number with official Kingbright documentation to validate RoHS compliance and availability status prior to procurement.

LED Indication - Discrete Selection Notes

Select this component when a standard 3528 form factor is required for space-constrained designs. Ensure the circuit design accommodates the specified 20 mA forward current and thermal limits up to 85°C. Verify that the green emission spectrum aligns with the intended visual signaling requirements and regulatory standards for the target application environment.

LED Indication - Discrete Part Context

This component belongs to the Kingbright AA3528 series of single-color surface-mount LEDs. The series offers various color options and lens configurations within a standardized 3.5 x 2.8 mm package. This specific variant provides green illumination suitable for general-purpose indication tasks across consumer electronics and industrial control systems.
