AA3528SES/J4

LED Indication - Discrete Overview

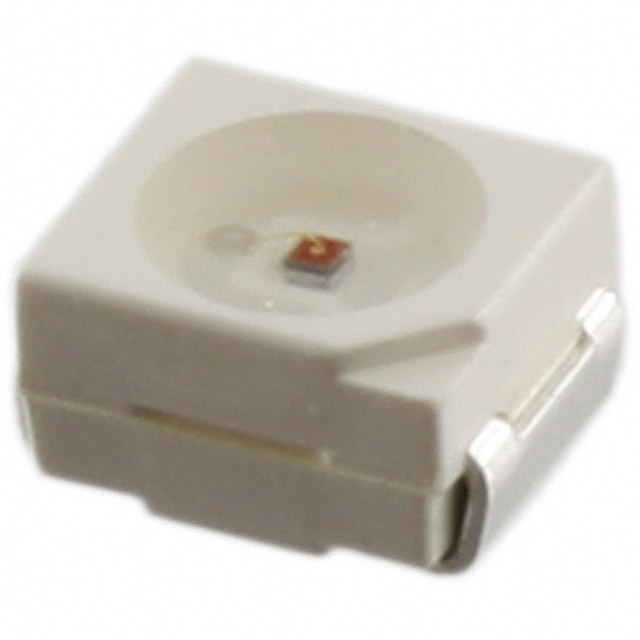

The AA3528SES/J4 is a single-color surface-mount LED manufactured by Kingbright, designed for indicator applications. It emits orange light with a peak wavelength of 605 nm and features a water-clear lens. The component operates at a forward current of 20 mA with a forward voltage of 2.2 V and a power rating of 140 mW. It delivers a nominal luminous intensity of 2800 mcd and offers a wide viewing angle of 120 degrees. The package dimensions are 3.5 mm in length and 2.8 mm in width, housed in a standard 1411 (3528 metric) footprint.

LED Indication - Discrete Feature Summary

• High-intensity orange emission optimized for visibility
• Wide 120-degree viewing angle for broad signal dispersion
• Water-clear lens construction for maximum light transmission

LED Indication - Discrete Applications

• Panel status indicators
• Equipment front-panel signaling
• Consumer electronics status lights

LED Indication - Discrete Procurement Notes

Verify the specific suffix J4 to confirm the 2800 mcd intensity bin and 120-degree viewing angle specifications. Ensure compatibility with standard 3528 SMD reflow soldering profiles. Confirm RoHS compliance status through official manufacturer documentation prior to integration into regulated assemblies.

LED Indication - Discrete Selection Notes

Select this component when high brightness is required within a standard 3528 form factor. The 120-degree viewing angle makes it suitable for applications requiring wide-area visibility. Compare against lower intensity variants if visual range requirements are less demanding or if power consumption constraints are stricter.

LED Indication - Discrete Part Context

This part belongs to the Kingbright AA3528 series of single-color LEDs. The series utilizes standard surface-mount technology packages compatible with automated pick-and-place assembly processes. The specific model represents an orange variant within the broader family of available colors and intensities.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other Kingbright models within the AA3528 series that share identical mechanical dimensions and electrical characteristics. Verify spectral match and intensity binning before cross-referencing with competitor components offering similar 3528 footprints.
