Product Detailed Parameters
- Description：LED RGB CLEAR CHIP SMD
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：560mcd Red, 580mcd Green, 300mcd Blue
- Lens Style：Square with Flat Top
- Lens Size：2.44mm
- Voltage - Forward (Vf) (Typ)：2.2V Red, 3.3V Green, 3.3V Blue
- Current - Test：20mA Red, 20mA Green, 20mA Blue
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：625nm Red, 525nm Green, 470nm Blue
- Wavelength - Peak：640nm Red, 515nm Green, 465nm Blue
- Features：-
- Package / Case：6-PLCC
- Supplier Device Package：Chip LED
- Size / Dimension：3.20mm L x 2.80mm W
- Height (Max)：1.85mm
- Grade：-
- Qualification：-
Download product information
Overview

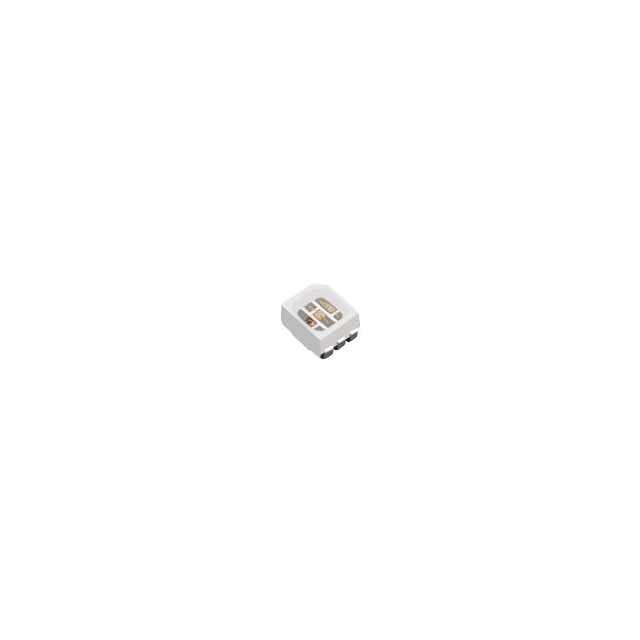

The AAAF3529VBDSEJ3ZGS is a multi-color surface-mount LED component manufactured by Kingbright. It features an RGB configuration housed in a compact 3.5x2.8mm package, specifically designed for full-color indication applications. The device integrates red, green, and blue emitters within a single unit to enable diverse color mixing capabilities. This SMD LED supports individual channel driving for flexible design implementation in dense electronic systems.
Feature Summary
- Integrates red, green, and blue light-emitting diodes into a single compact surface-mount package
- Supports independent driving of individual color channels for flexible circuit design
- Designed for full-color indication applications requiring mixed color output
Applications
- Full-color indication systems
- Dense system designs requiring compact multi-color sources
- Electronic devices needing integrated RGB signaling
Procurement Notes
Verify the specific suffix against official Kingbright documentation to confirm exact optical characteristics. Ensure compatibility with standard SMD reflow processes. Confirm RoHS compliance status through current datasheets. Validate pinout configurations prior to PCB layout finalization.
Selection Notes
Select this component when space-constrained designs require integrated RGB functionality. Consider thermal management requirements for continuous operation. Evaluate forward voltage drops across all three channels during circuit design. Ensure driver circuits support the required current levels for each color emitter independently.
Part Context
This part belongs to Kingbright's SMD LED portfolio, which includes various single and multi-color options. The manufacturer offers specialized series like HeliColour for enhanced performance. These components are engineered for modern electronics manufacturing standards and automated assembly processes.
Replacement Considerations
Consult official Kingbright substitution guides for verified alternatives. Cross-reference package dimensions and pin assignments carefully. Verify electrical parameters match original design requirements before implementing any substitute part number.
