AAAF5060QBFSEEZGS

$1.74

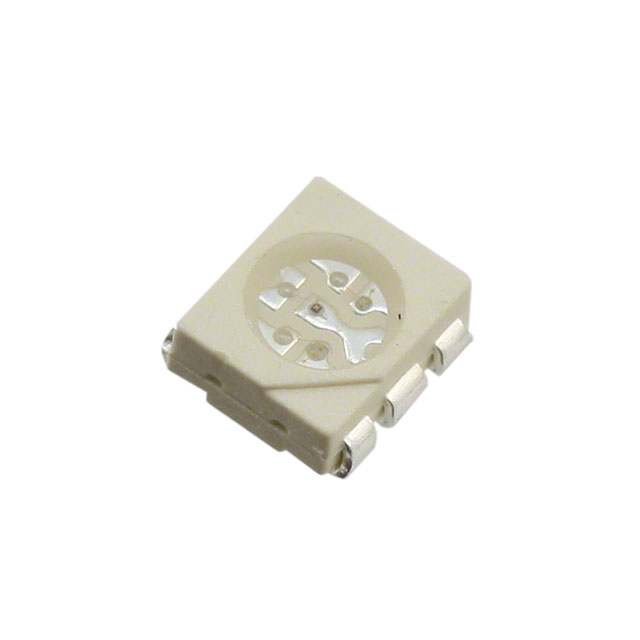

Description：5.0X6.0MM RGB SMD LED
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:cdc9de305f72 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AAAF5060QBFSEEZGS is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is 5.0X6.0MM RGB SMD LED. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AAAF5060QBFSEEZGS

Description：5.0X6.0MM RGB SMD LED
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Green, Blue (RGB)
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：1300mcd Red, 1000mcd Green, 400mcd Blue
Lens Style：Round with Flat Top
Lens Size：4.00mm Dia
Voltage - Forward (Vf) (Typ)：2V Red, 3.3V Green, 3.3V Blue
Current - Test：20mA Red, 20mA Green, 20mA Blue
Viewing Angle：100°
Mounting Type：Surface Mount
Wavelength - Dominant：621nm Red, 525nm Green, 465nm Blue
Wavelength - Peak：630nm Red, 515nm Green, 460nm Blue
Features：-
Package / Case：6-SMD, J-Lead
Supplier Device Package：6-SMD
Size / Dimension：6.00mm L x 5.00mm W
Height (Max)：2.40mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AAAF5060QBFSEEZGS

AAAF5060QBFSEEZGS

LED Indication - Discrete Overview

The AAAF5060QBFSEEZGS is a surface-mount tri-color LED manufactured by Kingbright, housed in a 2024 (5060 metric) package measuring 5.0 mm in length, 6.0 mm in width, and 2.3 mm in height. It features a round flat lens with water-clear transparency and a 100-degree viewing angle. The component emits blue at 465 nm, green at 525 nm, and red at 621 nm. Typical forward voltages are 3.3 V for blue and green, and 2.0 V for red. The maximum power rating is 350 mW.

LED Indication - Discrete Feature Summary

Tri-color configuration combining blue, green, and red emitters within a single SMD package
Round flat lens design providing a 100-degree viewing angle
Water-clear lens transparency for optimal light transmission

LED Indication - Discrete Applications

Status indication in electronic devices
Multi-color signaling in control panels
Visual feedback in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official Kingbright documentation to confirm wavelength and voltage characteristics. Ensure the ordering part number matches the exact package dimensions and pin configuration required for your PCB layout. Confirm moisture sensitivity level handling procedures prior to assembly.

LED Indication - Discrete Selection Notes

Select this component when a compact 5060 form factor is required for multi-color indication. The 100-degree viewing angle suits applications needing broad visibility. Verify that the 3.3 V forward voltage for blue and green channels aligns with your system's drive circuitry capabilities.

LED Indication - Discrete Part Context

This part belongs to Kingbright's AAAF series of surface-mount LEDs. The 5060 package size offers a balance between light output and board space efficiency compared to smaller 0805 or larger 1206 packages. It is designed for automated pick-and-place assembly processes.
