ABLS3-11.0592MHZ-D4Y-T

Crystals Overview

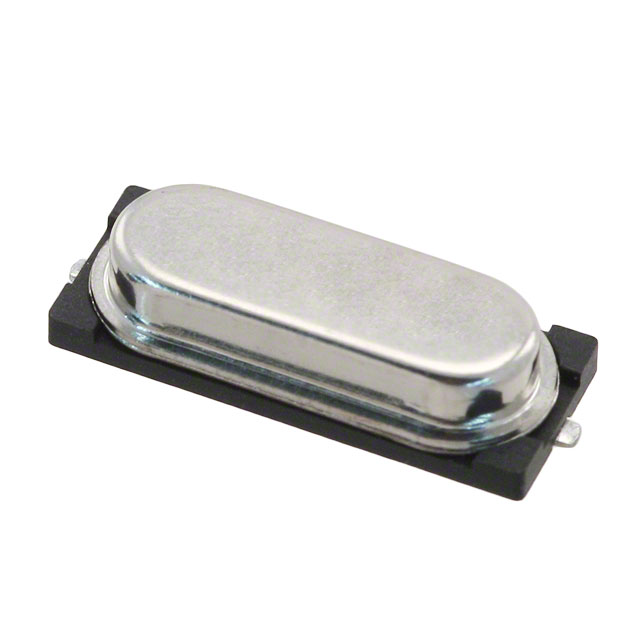

The ABLS3-11.0592MHZ-D4Y-T is a surface-mount ceramic crystal manufactured by Abracon LLC, operating at a standard frequency of 11.0592 MHz. It features a load capacitance of 18 pF and a frequency tolerance of ±30 ppm. The component utilizes the HC-49/US package with a low-profile design, measuring 11.4 mm in length, 4.7 mm in width, and 2.5 mm in height. It exhibits an equivalent series resistance (ESR) of 50 Ohms and supports fundamental mode operation across a wide industrial temperature range from -40°C to +85°C.

Crystals Feature Summary

• Low-profile HC-49/US SMD package for compact board space utilization
• Industrial-grade temperature stability suitable for harsh environments
• Fundamental mode oscillation with standardized load capacitance

Crystals Applications

• Microprocessor clock circuits
• Communication equipment timing references
• Consumer electronic device synchronization

Crystals Procurement Notes

Verify that the specific suffix D4Y-T matches the required low-profile height specification of 2.5mm against your PCB footprint constraints. Confirm the ESR value of 50 Ohms aligns with your oscillator circuit's negative resistance margin requirements. Ensure the RoHS3 compliance status meets your assembly facility's environmental regulations before finalizing procurement orders.

Crystals Selection Notes

Select this component when a standard HC-49 footprint is required but vertical board space is limited. The 11.0592 MHz frequency is optimal for baud rate generation in serial communication interfaces. Compare the 50 Ohm ESR against alternative crystals; lower ESR values may be necessary if driving high-capacitance loads or ensuring robust startup in cold temperatures.

Crystals Part Context

This part belongs to the ABLS3 series, which represents Abracon's low-profile variant of the traditional HC-49/US crystal. Unlike the taller ABLS2 series, the ABLS3 series reduces mounting height to accommodate modern thin-profile electronics while maintaining the mechanical robustness associated with metal can packages.

Crystals Replacement Considerations

ABM3C-11.0592MHZ-D4Y-T offers similar electrical performance but uses a smaller 4-SMD ceramic package instead of the HC-49/US form factor.
