AD8606ACBZ-REEL
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

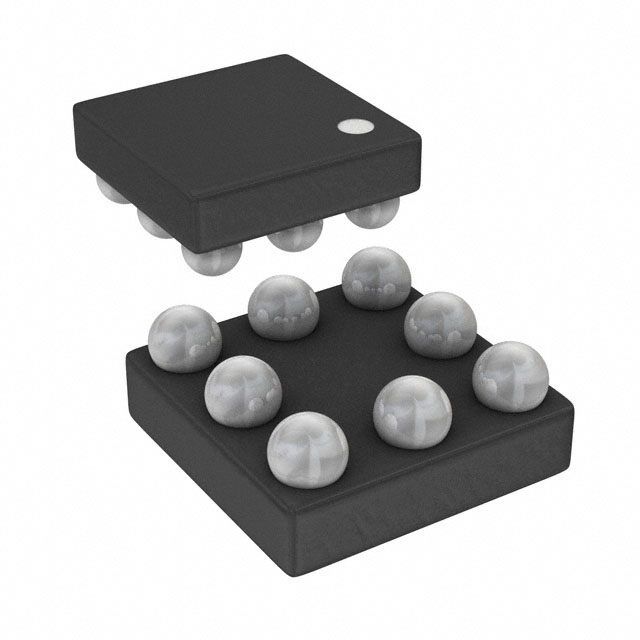

- Description：IC CMOS 2 CIRCUIT 8WLCSP
- Series：DigiTrim®
- Mfr：Analog Devices Inc.
- Package：Tape & Reel (TR)
- Amplifier Type：CMOS
- Number of Circuits：2
- Output Type：Rail-to-Rail
- Slew Rate：5V/µs
- Gain Bandwidth Product：10 MHz
- Current - Input Bias：1 pA
- Voltage - Input Offset：80 µV
- Current - Supply：1mA (x2 Channels)
- Current - Output / Channel：80 mA
- Voltage - Supply Span (Min)：2.7 V
- Voltage - Supply Span (Max)：5.5 V
- Operating Temperature：-40°C ~ 125°C
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Package / Case：8-WFBGA, WLCSP
- Supplier Device Package：8-WLCSP (1.43x1.775)
- -3db Bandwidth：-
Download product information
Overview
The AD8606ACBZ-REEL7 is a dual precision CMOS operational amplifier featuring rail-to-rail input and output capabilities. It operates on a single supply voltage ranging from 2.7 V to 5.5 V. Key electrical specifications include a maximum offset voltage of 65 µV, an input bias current of 1 pA maximum, and a voltage noise density of 8 nV/√Hz. The device provides a gain-bandwidth product of 10 MHz and a slew rate of 5 V/µs. It is housed in an 8-ball WLCSP package and functions within an extended industrial temperature range of -40°C to +125°C.
Feature Summary
- Utilizes patented DigiTrim trimming technique for superior precision without laser trimming.
- Provides rail-to-rail input and output operation with wide signal bandwidth.
- Features very low input bias currents and low input voltage noise.
- Operates stably as a unity gain amplifier.
Applications
- Photodiode amplification
- Battery-powered instrumentation
- Multipole filters
- Sensors
- Barcode scanners
Procurement Notes
Verify the specific AC suffix against official documentation to confirm performance grade variations. Confirm the REEL7 designation matches the required tape-and-reel packaging format. Ensure the WLCSP footprint aligns with the target PCB layout constraints. Validate RoHS compliance status through the manufacturer's latest release notes.
Selection Notes
Select this component for applications requiring high DC accuracy combined with AC performance. The low offset voltage and drift make it suitable for precision sensor interfaces. The rail-to-rail I/O capability allows for maximum dynamic range in low-voltage single-supply systems. Consider the small WLCSP footprint for space-constrained portable designs.
Part Context
This part belongs to the AD860x family of precision amplifiers, which includes single (AD8605) and quad (AD8608) variants. The AD8606 specifically integrates two channels in an 8-ball WLCSP package. This family shares common architectural features such as CMOS inputs and DigiTrim technology, ensuring consistent performance characteristics across channel counts.
Replacement Considerations
The AD8606ARZ and AD8606ARMZ are functionally equivalent parts within the same family but utilize different packages (SOIC and MSOP). Verify pin compatibility and thermal requirements when substituting these alternative packages.
