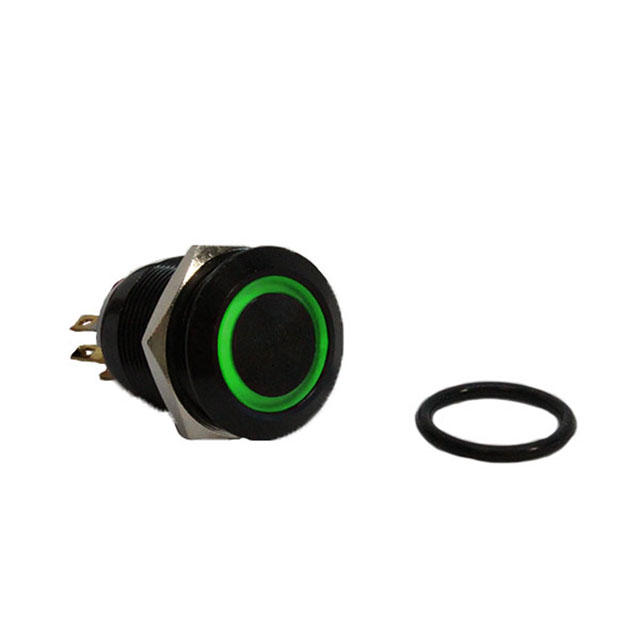

Pushbutton Switches AH1LBBG12 product image

AH1LBBG12

$21.84
  • Description：SWITCH PB DPST-NO/NC 1A 125V
  • Series：AH
  • Mfr：CIT Relay and Switch
  • Package：Tray

SKU:5637626b529e Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

AH1LBBG12 is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is SWITCH PB DPST-NO/NC 1A 125V. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for AH1LBBG12

  • Description：SWITCH PB DPST-NO/NC 1A 125V
  • Series：AH
  • Mfr：CIT Relay and Switch
  • Package：Tray
  • Mounting Type：Panel Mount, Front
  • Type：Anti-Vandal, Illuminated
  • Circuit：SPST-NO + SPST-NC
  • Switch Function：On-Off, Off-On
  • Current Rating (Amps)：1A (AC/DC)
  • Actuator Type：Round, Button, Flush
  • Actuator Marking：-
  • Color - Actuator/Cap：Black
  • Illumination Type, Color：LED, Green
  • Illumination Voltage (Nominal)：12 VDC
  • Termination Style：Solder, Quick Connect - 0.110" (2.8mm)
  • Ingress Protection：IP67 - Dust Tight, Waterproof
  • Features：Stainless Steel 316
  • Panel Cutout Dimensions：Circular - 19.00mm Dia
  • Operating Temperature：-25°C ~ 70°C
  • Voltage Rating - DC：24 V
  • Voltage Rating - AC：125 V

Pushbutton Switches datasheet and documents for AH1LBBG12

AH1LBBG12
