AHNR252010100MTA

Fixed Inductors Overview

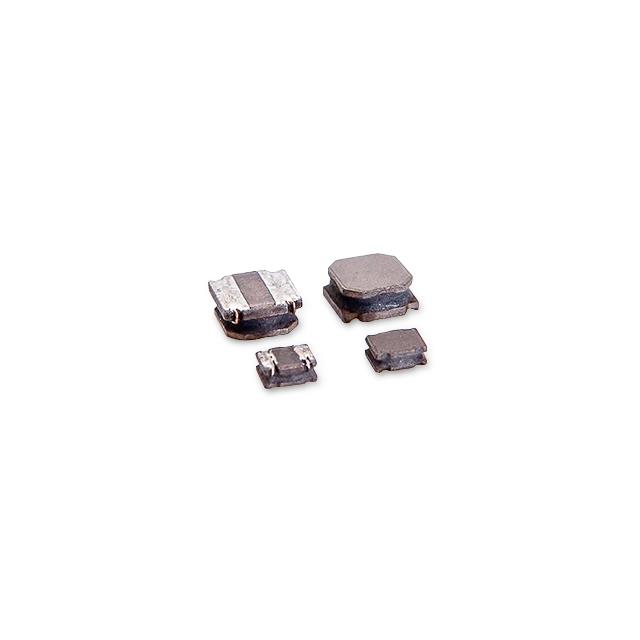

The AHNR252010100MTA is a shielded wirewound inductor manufactured by Arlitech Electronic Corp. It features a ferrite core with base metal construction, housed in an 0810 (2025 Metric) surface-mount package. The component provides an inductance of 10 µH with a tolerance of ±20%. It supports a maximum current rating of 1 A and exhibits a DC resistance of 450 mOhm. The device complies with RoHS standards and has a Moisture Sensitivity Level (MSL) classification of 1, indicating unlimited exposure to ambient conditions.

Fixed Inductors Feature Summary

• Shielded wirewound design utilizing a ferrite core for enhanced performance
• Base metal core construction engineered to provide large saturation current capabilities
• Metallization on the ferrite core structure ensures excellent shock resistance and damage-free durability

Fixed Inductors Applications

• Power supply filtering circuits
• Signal processing applications requiring stable inductance
• General-purpose electronic circuitry within surface-mount assemblies

Fixed Inductors Procurement Notes

Verify the manufacturer part number AHNR252010100MTA against official Arlitech Electronic Corp documentation to confirm specifications. Ensure compliance with RoHS directives and MSL level 1 requirements for storage and handling. Cross-reference the 0810 package dimensions and electrical parameters with the specific datasheet before integration into production workflows.

Fixed Inductors Selection Notes

Select this component when a shielded wirewound inductor with high saturation current is required for space-constrained designs. The 0810 footprint suits applications needing robust mechanical durability due to core metallization. Consider the 1 A current rating and 450 mOhm resistance for power efficiency needs in compact electronics.

Fixed Inductors Part Context

This fixed inductor belongs to the AHNR252010 series from Arlitech Electronic Corp., designed for surface-mount technology. The series emphasizes durability through ferrite core metallization and offers reliable performance in various electronic systems. The specific model AHNR252010100MTA represents a standard 10 µH value within this product line.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Verify compatibility with alternative components using exact electrical and dimensional specifications from official datasheets.

Fixed Inductors FAQ

What is the saturation current characteristic of this inductor?

The base metal core construction is specifically designed to provide large saturation current capabilities.

How does the core construction affect durability?

Metallization on the ferrite core results in excellent shock resistance and damage-free durability.
