ALAN-2401-T

Overview

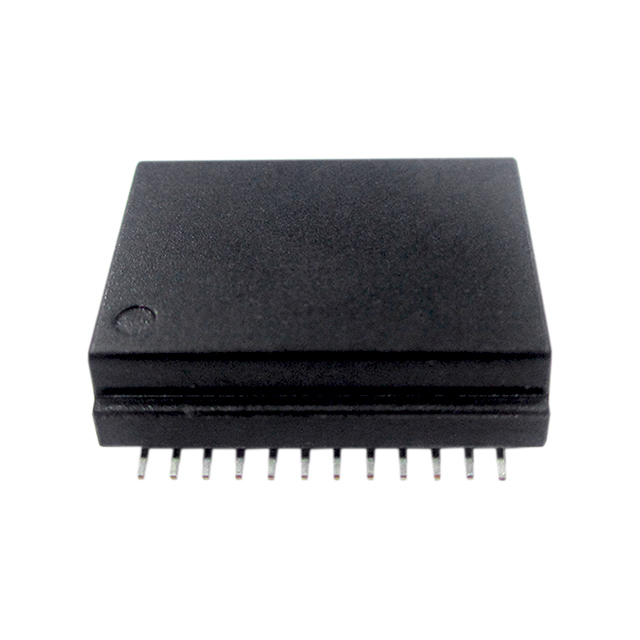

The ALAN-2401-T is a single-port LAN transformer designed for 10G Base-T applications. It features an inductance of 120µH and supports Power over Ethernet (PoE). The component operates within a temperature range of -40°C to 85°C. Its physical dimensions are 17.50mm x 14.20mm with a maximum seated height of 5.55mm. The device utilizes a surface mount mounting type.

Feature Summary

• Designed for 10G Base-T LAN applications
• Supports Power over Ethernet (PoE)
• Single port configuration

Applications

• 10G Base-T network interfaces
• LAN connectivity modules
• Ethernet switch ports

Procurement Notes

Verify the specific suffix 'T' against the manufacturer's current documentation to confirm tape and reel packaging specifications. Confirm that the part status remains active or identify valid obsolescence notices, as some Abracon listings indicate potential discontinuation for related series. Ensure the datasheet matches the exact part number for accurate pinout and electrical parameter validation.

Selection Notes

Select this component when a single-port solution for 10G Base-T transmission is required. Verify compatibility with PoE standards if power delivery over the data lines is necessary. Check mechanical constraints against the specified footprint of 17.50mm by 14.20mm and height limit of 5.55mm. Ensure the operating temperature range meets the environmental requirements of the target system.

Part Context

This component belongs to Abracon's portfolio of pulse and datacom transformers. It serves as a critical interface element for Ethernet connectivity, providing isolation and signal integrity for high-speed data transmission. The product line includes variants for different speed classes and port configurations.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer for direct cross-reference recommendations.
