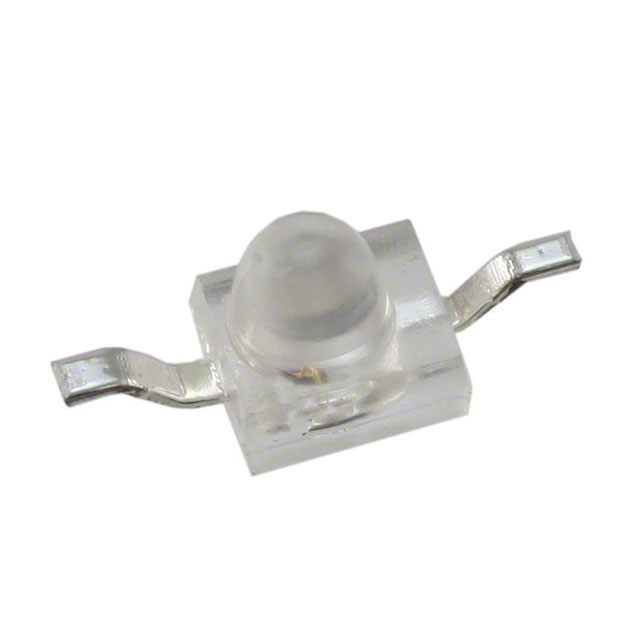

AM2520CGCK09

$0.51

Description：LED GREEN CLEAR SMD BOTTOM ENT
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b5a36c830c77 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AM2520CGCK09 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED GREEN CLEAR SMD BOTTOM ENT. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AM2520CGCK09

Description：LED GREEN CLEAR SMD BOTTOM ENT
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：800mcd
Lens Style：Round with Domed Top
Lens Size：1.90mm Dia
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：20°
Mounting Type：Surface Mount, Bottom Entry
Wavelength - Dominant：570nm
Wavelength - Peak：574nm
Features：-
Package / Case：2-SMD, Z-Bend
Supplier Device Package：SMD
Size / Dimension：2.50mm L x 2.00mm W
Height (Max)：2.90mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AM2520CGCK09

AM2520CGCK09

LED Indication - Discrete Overview

The AM2520CGCK09 is a single-color green surface-mount LED manufactured by Kingbright. It emits light at a peak wavelength of 570 nm with a water-clear lens. The component operates at a forward current of 20 mA and a forward voltage of 2 V, with a power rating of 75 mW. It features a dome-shaped lens with a diameter of 1.9 mm and provides an optical intensity of 400 mcd. The package dimensions are 2.5 mm in length, 2 mm in width, and 2.8 mm in height. It supports a viewing angle of 20 degrees and functions within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

Green emission at 570 nm with water-clear dome lens
Compact SMD-2 surface mount package for dense designs
Standard 20 mA forward current operation

LED Indication - Discrete Applications

Panel indicator lighting
Status indication in consumer electronics
General purpose visual signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix CGCK09 against the manufacturer datasheet to confirm the exact wavelength and binning requirements. Ensure that the supply chain source provides valid RoHS compliance documentation as specified by Kingbright. Cross-reference the Mouser part number 604-AM2520CGCK09 for accurate sourcing details.

LED Indication - Discrete Selection Notes

Select this component when a standard green indicator is required in a compact SMD footprint. Consider the 20-degree viewing angle and 400 mcd intensity for visibility needs. Verify thermal management capabilities within the -40°C to +85°C operating range for the target application environment.

LED Indication - Discrete Part Context

This part belongs to the AM2520 series of single-color LEDs from Kingbright. The series utilizes a 2.5x2.0 mm SMD package format suitable for automated assembly processes. It is categorized under general-purpose visible light emitters designed for reliable performance in electronic assemblies.
