Product Detailed Parameters
- Description：LED GREEN CLEAR SMD BOTTOM ENT
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：90mcd
- Lens Style：Round with Domed Top
- Lens Size：1.90mm Dia
- Voltage - Forward (Vf) (Typ)：2.2V
- Current - Test：20mA
- Viewing Angle：20°
- Mounting Type：Surface Mount, Bottom Entry
- Wavelength - Dominant：568nm
- Wavelength - Peak：565nm
- Features：-
- Package / Case：2-SMD, Z-Bend
- Supplier Device Package：SMD
- Size / Dimension：2.50mm L x 2.00mm W
- Height (Max)：2.90mm
- Grade：-
- Qualification：-
Download product information
Overview

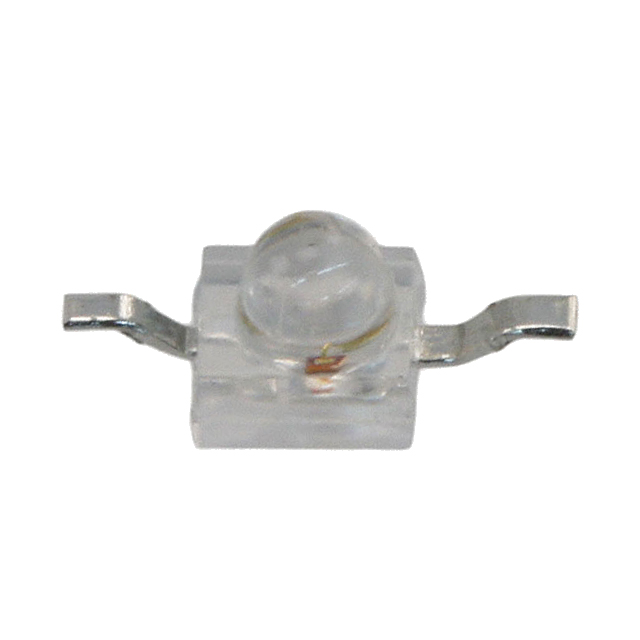

The AM2520SGC09 is a single-color green surface-mount LED from the Kingbright KM2520 series. It features a water-clear lens with a dome shape and emits light at a peak wavelength of 568nm. The component has a forward voltage of 2.2V and delivers an optical intensity of 80mcd. It utilizes a two-pin SMD package measuring 2.5mm by 2.0mm, designed for surface mounting on printed circuit boards.
Feature Summary
- Compact ultra-small surface-mount form factor suitable for dense PCB layouts
- Water-clear lens material provides high transparency and defined beam characteristics
- Dome-shaped lens geometry optimizes light distribution and viewing angle
Applications
- Electronic device status indication
- Panel indicator lighting
- Consumer electronics display modules
Procurement Notes
Verify the specific suffix code to confirm the exact binning parameters for wavelength and intensity. Ensure the ordering documentation matches the required forward voltage and luminous intensity specifications for the target application. Confirm RoHS compliance status through official manufacturer channels prior to procurement.
Selection Notes
Select this component when a compact green indicator is required for space-constrained designs. The 2.2V forward voltage aligns with standard low-voltage logic interfaces. Consider the 80mcd brightness level against ambient lighting conditions to ensure adequate visibility for the intended user interface application.
Part Context
This part belongs to the Kingbright KM2520 series, which offers various color options in a standardized ultra-small footprint. The series supports both standard and Z-bend lead configurations to accommodate different assembly requirements and mechanical constraints within modern electronic manufacturing processes.
Replacement Considerations
Direct substitutes include other Kingbright KM2520 series variants such as AM2520SYCK09 or AM2520SURCK09, provided the specific color and intensity requirements are met. Verify pin compatibility and thermal characteristics before substitution.
