AP1608SGC

Overview

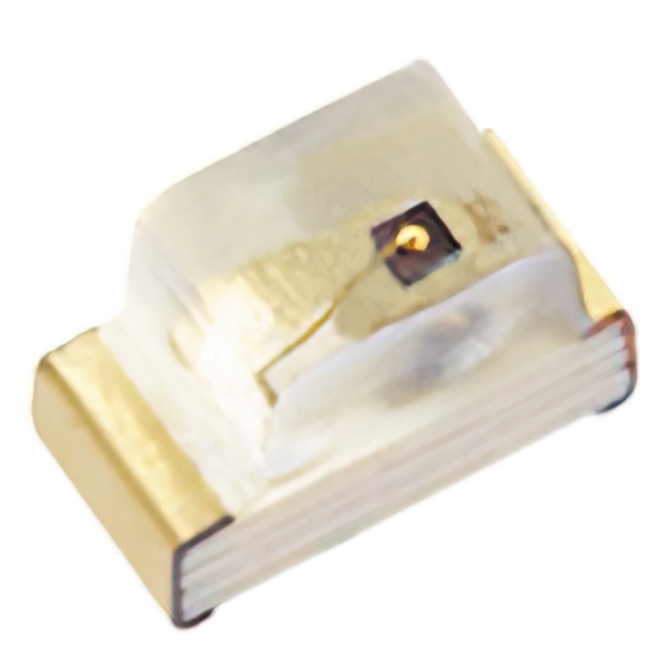

The AP1608SGC is a single-color green surface-mount LED from Kingbright, housed in a 1608 (0603) metric package measuring 1.6 mm x 0.8 mm. It emits light at a peak wavelength of 568 nm with a luminous intensity of 25 mcd. The component features a water-clear rectangular lens and operates within a temperature range of -40°C to +85°C. Electrical characteristics include a forward voltage of 2.2 V and a power rating of 62.5 mW.

Feature Summary

• Compact 1608 SMD form factor for space-constrained designs
• High brightness green emission at 568 nm
• Water-clear rectangular lens for optimized light transmission

Applications

• Indicator lights on electronic circuit boards
• Status indication in portable consumer devices
• Backlighting applications requiring low profile components

Procurement Notes

Verify the manufacturer part number AP1608SGC against official Kingbright documentation to ensure authenticity. Confirm that the received components match the specified 1608 package dimensions and electrical parameters. Check for moisture sensitivity labeling if storage conditions are critical. Ensure compliance with relevant environmental regulations such as RoHS before integration into final products.

Selection Notes

Select this component when a compact green indicator is required for PCB assembly. The 1608 package size suits high-density layouts where standard LEDs cannot fit. Consider the 2.2 V forward voltage drop for circuit design. The wide viewing angle and clear lens provide effective visibility for status signaling in various lighting conditions.

Part Context

This LED belongs to Kingbright's standard SMD LED lineup, designed for general-purpose indication. The 1608 package represents a common industry footprint for surface-mount technology. It serves as a discrete optical component within larger electronic assemblies, providing visual feedback through controlled current flow.

Replacement Considerations

Public confirmed substitute part numbers: KPHM-1608SGC-T.
