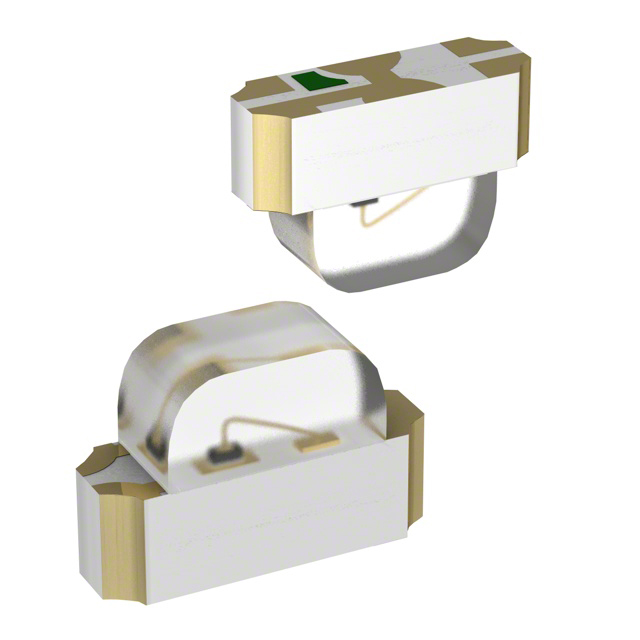

APA3010SURCK-GX

$0.30

Description：LED RED CLEAR CHIP SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b6bc065f0b2b Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED RED CLEAR CHIP SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：80mcd
Lens Style：Rectangle with Domed Top
Lens Size：2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ)：1.95V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：630nm
Wavelength - Peak：645nm
Features：-
Package / Case：2-SMD, No Lead
Supplier Device Package：Chip LED
Size / Dimension：3.00mm L x 2.00mm W
Height (Max)：1.00mm
Grade：-
Qualification：-

Download product information

APA3010SURCK-GX

Overview

The APA3010SURCK-GX is a single-color red LED manufactured by Kingbright, designed for surface-mount technology applications. It features a side-looking configuration with a semitube lens shape and water-clear lens transparency. The component operates at a peak wavelength of 635 nm and delivers an optical intensity of 250 mcd under a forward current of 20 mA. Electrical characteristics include a forward voltage of 1.95 V and a power rating of 75 mW. The package dimensions are 3 mm in length, 2 mm in width, and 1 mm in height. It supports a viewing angle of 120 degrees and functions within a temperature range of -40 C to +85 C.

Feature Summary

Side-looking orientation with semitube lens geometry
Water-clear lens transparency for optimized light transmission
High-intensity red emission at 635 nm wavelength
Surface-mount construction for automated assembly

Applications

Panel indicator lighting
Backlighting systems
Healthcare device status indicators
Consumer electronics displays

Procurement Notes

Verify the specific suffix 'GX' against manufacturer documentation to confirm compliance with RoHS3 and REACH standards. Ensure moisture sensitivity level (MSL) handling protocols are followed during storage and reflow soldering processes. Cross-reference the part number alias KPA-3010SURCK if applicable to your supply chain records.

Selection Notes

Select this component when a high-brightness red indicator is required in a compact side-view form factor. The 120-degree viewing angle provides broad visibility for panel applications. Consider the 1.95 V forward voltage drop for circuit design compatibility. Verify thermal management requirements given the 75 mW power rating and operating temperature limits.

Part Context

This part belongs to the APA3010 series of single-color LEDs from Kingbright. The series includes various color options such as green and blue variants, all sharing similar physical dimensions and mounting styles. The APA3010SURCK-GX specifically denotes the red version with standard packaging and material specifications suitable for general-purpose electronic indication.
