Product Detailed Parameters
- Description：LED GREEN/RED CLEAR SMD
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green, Red
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：400mcd Green, 80mcd Red
- Lens Style：Rectangle with Flat Top
- Lens Size：2.00mm x 2.70mm
- Voltage - Forward (Vf) (Typ)：3.3V Green, 1.95V Red
- Current - Test：20mA Green, 20mA Red
- Viewing Angle：100°
- Mounting Type：Surface Mount
- Wavelength - Dominant：525nm Green, 630nm Red
- Wavelength - Peak：515nm Green, 645nm Red
- Features：-
- Package / Case：1210 (3225 Metric)
- Supplier Device Package：SMD
- Size / Dimension：3.20mm L x 2.70mm W
- Height (Max)：1.10mm
- Grade：-
- Qualification：-
Download product information
Overview

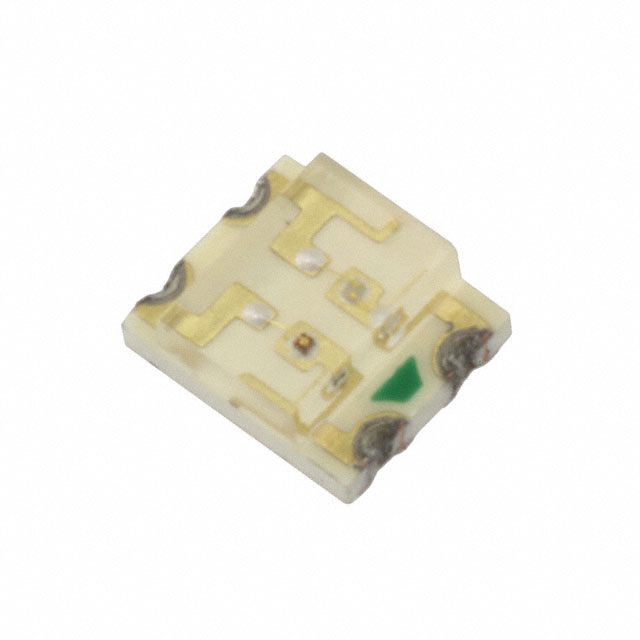

The APB3227SURKZGC is a bi-color surface-mount LED from the Kingbright HeliColour series, housed in a 1311 (3227 metric) package. It features independent red and green emitters with a rectangular water-clear lens. The device operates at a forward current of 20 mA per color. Electrical characteristics include a forward voltage of 2.5 V for the red element and 4.1 V for the green element. Optical performance specifies a luminous intensity of 250 mcd for red and 400 mcd for green. The emission wavelengths are 630 nm for red and 525 nm for green, providing a wide 100-degree viewing angle.
Feature Summary
- Dual-color configuration with independent red and green light sources within a single compact SMD package
- Wide 100-degree viewing angle facilitated by a rectangular water-clear lens design
- High-intensity output suitable for dense system designs requiring clear visual indication
Applications
- Status indication on electronic equipment panels
- Multi-state signaling in industrial control systems
- Visual feedback components in consumer electronics devices
Procurement Notes
Verify component authenticity through authorized Kingbright distributors or certified suppliers. Confirm RoHS3 compliance status prior to integration. Ensure proper handling procedures for moisture-sensitive devices are followed during storage and assembly. Cross-reference datasheet specifications against project requirements to validate electrical and optical parameters.
Selection Notes
Select this component when high brightness and wide visibility are required in space-constrained applications. The 1311 footprint accommodates standard surface-mount processes. Consider the distinct forward voltages for circuit design. Evaluate thermal management needs based on the specified power ratings for both colors during continuous operation.
Part Context
This part belongs to the Kingbright HeliColour family of multi-color LEDs. The series emphasizes material durability and electrical reliability for modern surface-mount technologies. The 3227 package size balances component density with optical performance, supporting various indication applications across different industries.
