APB3227SYKCGKC

Overview

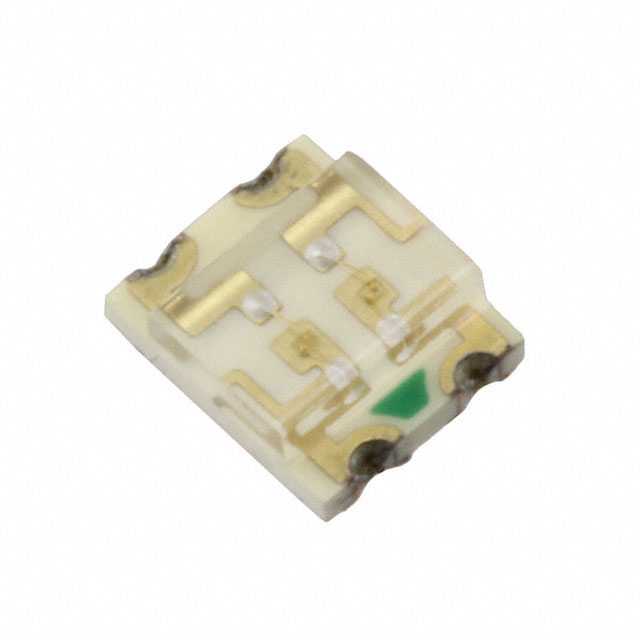

The APB3227SYKCGKC is a bi-color surface-mount LED from the Kingbright HeliColour series, housed in a 1210 (3225 metric) package. It features independent yellow and green emitters with peak wavelengths of 590 nm and 570 nm respectively. The device utilizes a water-clear dome lens to achieve viewing angles of 150 degrees for yellow and 55 degrees for green. Typical forward voltages are 2.1 V for both colors, driven at a test current of 20 mA.

Feature Summary

• Dual-emitter configuration enabling simultaneous or independent control of yellow and green light sources within a single compact package.

Applications

• Status indication on electronic equipment panels
• Bi-color signaling in industrial control systems
• Visual alerts in consumer electronics interfaces

Procurement Notes

Verify component authenticity through authorized Kingbright distributors. Confirm RoHS compliance status prior to integration. Ensure ESD handling protocols are followed during storage and assembly. Validate datasheet revisions against specific production batches.

Selection Notes

Select this component when distinct yellow and green outputs are required in a limited footprint. Consider the differing beam widths for visibility requirements. Evaluate thermal management needs based on the specified power ratings for each emitter color.

Part Context

This part belongs to the HeliColour family of multi-color LEDs designed for high reliability in dense circuit layouts. The 1210 form factor supports automated pick-and-place manufacturing processes while providing robust mechanical stability for surface mount applications.

Replacement Considerations

APBD3224LSYKCGKC-F01 offers similar bi-color functionality but differs in physical dimensions and optical characteristics.
