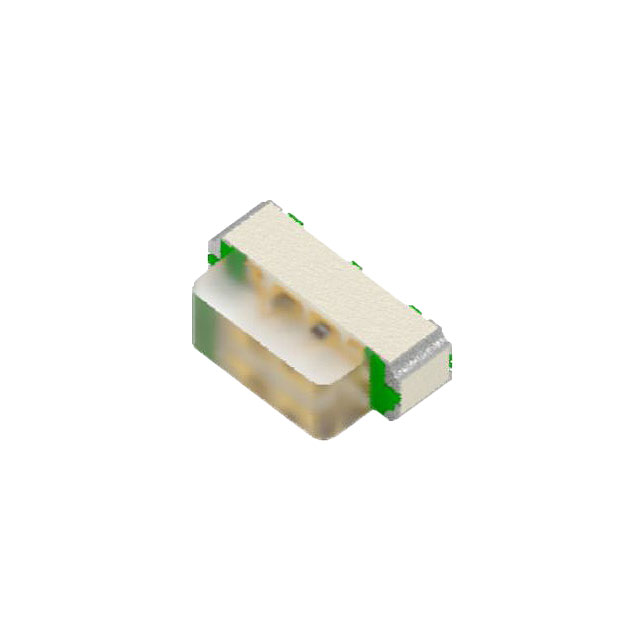

APBA2006SURKVBDC-5MA

$0.74

Description：2.0X0.6MM RIGHT ANGLE RED/BLUE S
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:2a1176ce602f Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APBA2006SURKVBDC-5MA is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is 2.0X0.6MM RIGHT ANGLE RED/BLUE S. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APBA2006SURKVBDC-5MA

Description：2.0X0.6MM RIGHT ANGLE RED/BLUE S
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Blue, Red
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：50mcd Blue, 60mcd Red
Lens Style：Rectangle with Flat Top
Lens Size：1.50mm x 0.60mm
Voltage - Forward (Vf) (Typ)：2.8V Blue, 1.8V Red
Current - Test：5mA Blue, 5mA Red
Viewing Angle：140°
Mounting Type：Surface Mount
Wavelength - Dominant：470nm Blue, 630nm Red
Wavelength - Peak：465nm Blue, 645nm Red
Features：-
Package / Case：4-SMD, No Lead
Supplier Device Package：-
Size / Dimension：2.00mm L x 0.60mm W
Height (Max)：1.15mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APBA2006SURKVBDC-5MA

APBA2006SURKVBDC-5MA

LED Indication - Discrete Overview

The APBA2006SURKVBDC-5MA is a dual-color surface-mount LED by Kingbright, featuring independent blue and red emitters in a 2.0x0.6mm package. It emits blue light at 470nm with a luminous intensity of 50mcd and forward voltage of 2.8V. The red emitter operates at 630nm with 60mcd intensity and 1.8V forward voltage. Designed for SMT assembly, it offers a wide viewing angle and low power consumption, suitable for compact electronic indicator applications.

LED Indication - Discrete Feature Summary

Dual-color configuration with independent blue and red emission channels
Low profile surface-mount design for space-constrained PCBs
Wide viewing angle for enhanced visibility from various positions

LED Indication - Discrete Applications

Status indicators for portable consumer electronics
Backlight illumination for device interfaces
Signal indication in compact control panels

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized distributors. Confirm RoHS compliance status prior to integration. Ensure ESD handling protocols are followed during storage and assembly. Validate pin compatibility with target footprint designs. Review datasheet revisions for any updated electrical characteristics or mechanical tolerances before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Choose this component when dual-color signaling is required within strict height limitations. The 2.0x0.6mm form factor supports high-density board layouts. Independent channel control allows distinct visual feedback states. Consider thermal management requirements given the small package size. Evaluate current driving capabilities against the specified forward voltage parameters for both color channels.

LED Indication - Discrete Part Context

Kingbright produces specialized optoelectronic components for industrial and consumer markets. This part belongs to their discrete LED indication series, focusing on miniaturized solutions. The manufacturer emphasizes reliability and consistent optical performance across their product lines. Engineering support is available for integration into custom hardware designs requiring precise color mixing or sequential signaling.
