Product Detailed Parameters
- Description：LED GREEN/RED CLR CHIP SMD R/A
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green, Red
- Configuration：Common Anode
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：70mcd Green, 80mcd Red
- Lens Style：Rectangle with Domed Top
- Lens Size：2.00mm x 1.00mm
- Voltage - Forward (Vf) (Typ)：2.1V Green, 1.95V Red
- Current - Test：20mA Green, 20mA Red
- Viewing Angle：140°
- Mounting Type：Surface Mount, Right Angle
- Wavelength - Dominant：570nm Green, 630nm Red
- Wavelength - Peak：574nm Green, 645nm Red
- Features：-
- Package / Case：3-SMD, No Lead
- Supplier Device Package：Chip LED
- Size / Dimension：3.00mm L x 2.00mm W
- Height (Max)：1.00mm
- Grade：-
- Qualification：-
Download product information
Overview

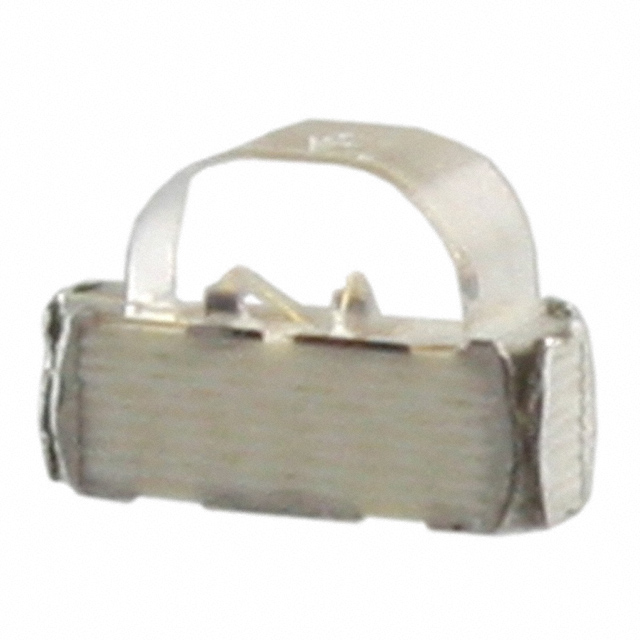

The APBA3010SURKCGKC-GX is a bi-color surface-mount LED from Kingbright, featuring red and green emission within a 3.0mm x 1.0mm right-angle package. It utilizes a water-clear semitube lens to achieve a wide 140-degree viewing angle. The component operates with a maximum forward current of 20 mA and supports a temperature range from -40°C to +85°C. Designed for SMD/SMT installation, it offers reliable performance in compact electronic assemblies requiring dual-color indication.
Feature Summary
- Bi-color configuration combining red and green light sources in a single right-angle SMD package
- Water-clear semitube lens design providing a wide 140-degree viewing angle
- Compact 3.0mm x 1.0mm footprint suitable for space-constrained surface-mount applications
Applications
- Status indicator lights for consumer electronics
- Backlighting for control panels and switches
- Visual signaling in medical devices
- Indicator functions in automotive interior systems
Procurement Notes
Verify the specific suffix against official Kingbright documentation to confirm exact wavelength and intensity binning. Ensure compatibility with standard reflow soldering profiles for right-angle components. Check moisture sensitivity level requirements for storage and handling prior to assembly. Confirm that the selected variant meets all necessary regulatory compliance standards for the target market.
Selection Notes
Select this component when a dual-color indication is required in a minimal footprint. The right-angle orientation facilitates specific board layout constraints. Consider the 140-degree viewing angle for visibility requirements. Evaluate thermal management needs given the operating temperature limits. Compare against single-color alternatives if only one color is functionally necessary.
Part Context
This part belongs to Kingbright's APA/APBA series of right-angle SMD LEDs. The series is characterized by its small 3.0mm x 1.0mm dimensions and gallium phosphide construction. It is designed for high-volume manufacturing processes and offers consistent optical performance across production batches. The product line supports various color combinations and lens types.
Replacement Considerations
Direct substitutes include APBA3010SURKCGKC and APBA3010SURKCGKC-F01. Verify mechanical pinout and electrical characteristics before substitution. Ensure the replacement part maintains the same right-angle form factor and lens transparency.
