Product Detailed Parameters
- Description：3.0X1.0 BI COLOR SMD LED
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green, Yellow
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：12mcd Green, 6mcd Yellow
- Lens Style：Rectangle with Domed Top
- Lens Size：2.00mm Dia
- Voltage - Forward (Vf) (Typ)：2.2V Green, 2.1V Yellow
- Current - Test：20mA Green, 20mA Yellow
- Viewing Angle：140°
- Mounting Type：Surface Mount, Right Angle
- Wavelength - Dominant：568nm Green, 588nm Yellow
- Wavelength - Peak：565nm Green, 590nm Yellow
- Features：-
- Package / Case：3-SMD, No Lead
- Supplier Device Package：3-SMD
- Size / Dimension：3.00mm L x 2.00mm W
- Height (Max)：1.15mm
- Grade：-
- Qualification：-
Download product information
Overview

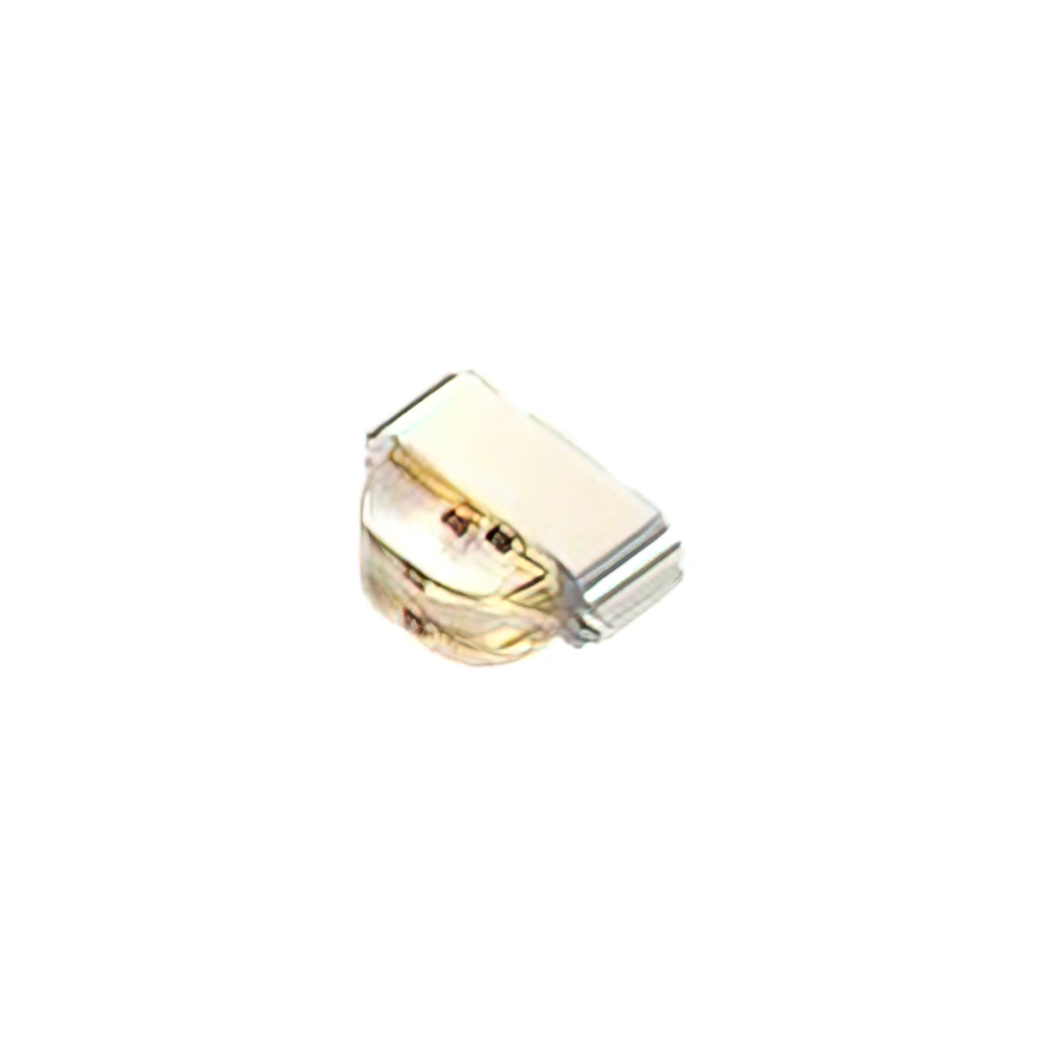

The APBA3010YSGC-F01 is a surface-mount bi-color LED from Kingbright, housed in a 3020 (1208 metric) package with dimensions of 3.0 mm x 2.0 mm x 1.0 mm. It integrates yellow and green emitters within a single water-clear semitube lens. The component operates at a standard forward current of 20 mA, with forward voltages specified at 2.1 V for the yellow channel and 2.2 V for the green channel. Power ratings are 62.5 mW and 75 mW respectively. Peak wavelengths are 588 nm and 568 nm, providing a viewing angle of 140 degrees.
Feature Summary
- Integrates two distinct color channels (yellow and green) into a compact dual-emitter structure.
- Features a water-clear semitube lens designed to provide a wide 140-degree viewing angle.
- Supports right-angle surface mount installation for efficient PCB layout utilization.
Applications
- Status indication on electronic control panels
- Bi-color signaling in industrial equipment interfaces
- Visual feedback systems in consumer electronics
Procurement Notes
Verify the specific suffix F01 against manufacturer datasheets to confirm binning and optical intensity grades. Ensure compatibility with RoHS directives if required by your assembly standards. Confirm that the 3020 footprint matches your design constraints before finalizing procurement.
Selection Notes
Select this component when a dual-color status indicator is required in a limited space. The 140-degree viewing angle offers broad visibility compared to narrower beam LEDs. Consider the 20 mA drive requirement and verify thermal management capabilities for continuous operation within the -40 C to +85 C range.
Part Context
This part belongs to Kingbright's multi-color LED portfolio, specifically utilizing the 3020 SMD form factor. It serves as a compact alternative to discrete single-color LEDs, reducing board space while offering dual-state functionality. The series is engineered for automated surface-mount assembly processes.
Replacement Considerations
Direct substitutes include other Kingbright 3020 bi-color LEDs such as APB3025YSGC-F01, noting the dimensional difference in width. Cross-reference wavelength and luminous intensity specifications carefully when evaluating generic equivalents from other manufacturers.
