Product Detailed Parameters
- Description：LED RED CLEAR SMD
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：60mcd
- Lens Style：Round with Domed Top
- Lens Size：1.70mm Dia
- Voltage - Forward (Vf) (Typ)：2V
- Current - Test：20mA
- Viewing Angle：20°
- Mounting Type：Surface Mount
- Wavelength - Dominant：617nm
- Wavelength - Peak：627nm
- Features：-
- Package / Case：1210 (3225 Metric)
- Supplier Device Package：SMD
- Size / Dimension：3.20mm L x 2.40mm W
- Height (Max)：2.40mm
- Grade：-
- Qualification：-
Download product information
Overview

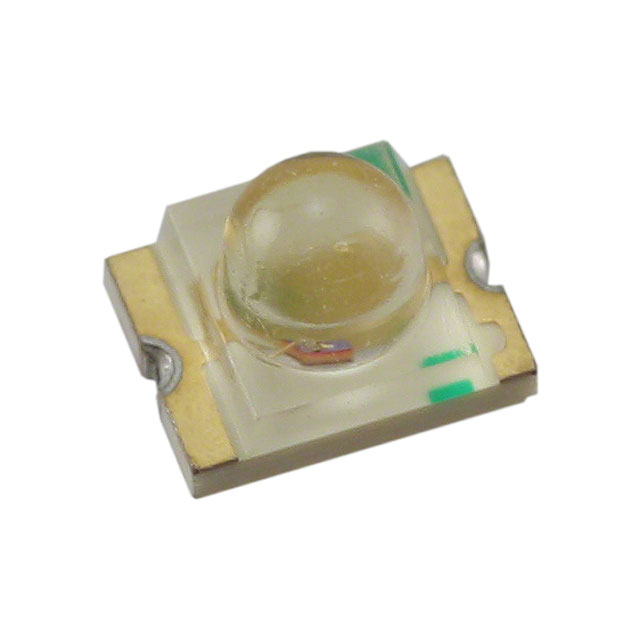

The APD3224EC-F01 is a surface-mount bi-color LED component manufactured by Kingbright, housed in a 1210 (3.2x2.4mm) package. It features a water-clear dome lens and emits red light with a peak wavelength of 627nm and a dominant wavelength of 617nm. The device operates at a forward current of 20mA with a forward voltage of 1.95V. It offers a luminous intensity of 40 to 60 mcd and a viewing angle of 20 degrees. The component supports a wide operating temperature range from -40°C to +85°C and includes moisture sensitivity protection.
Feature Summary
- Dual-wavelength emission capability within a compact SMD form factor
- Water-clear dome lens design for optimized light transmission
- High-efficiency red LED construction suitable for indicator applications
Applications
- Electronic status indicators
- Panel-mounted signal lights
- Consumer electronics display modules
Procurement Notes
Verify the specific datasheet version for the APBD3224 series when sourcing, as Kingbright utilizes similar packaging for various color combinations. Confirm that the EC suffix corresponds to the standard red emission specifications rather than other variants in the HeliColour line. Ensure compatibility with standard reflow soldering profiles for 1210 packages during assembly planning.
Selection Notes
Select this component when a low-profile red indicator is required for space-constrained designs. The 20mA drive current allows for direct interfacing with many microcontroller GPIO pins without additional current-limiting complexity. Consider the 20-degree viewing angle for applications requiring focused visibility rather than wide-angle dispersion.
Part Context
This part belongs to Kingbright's APD3224 series of surface-mount LEDs. It shares the physical 1210 footprint with other variants such as the APBD3224LSYKCGKC and APBD3224LSURKSYKC, which offer different color combinations like yellow/green or red/yellow. The series is designed for automated pick-and-place assembly processes.
Replacement Considerations
Direct substitutes include other Kingbright 1210 red LEDs such as the APD3224SURCK-F01, though verification of specific luminous intensity and wavelength tolerances is required. Cross-brand replacements must match the 3.2x2.4mm outline and pin configuration.
