APD3224PBC/A-F01

LED Indication - Discrete Overview

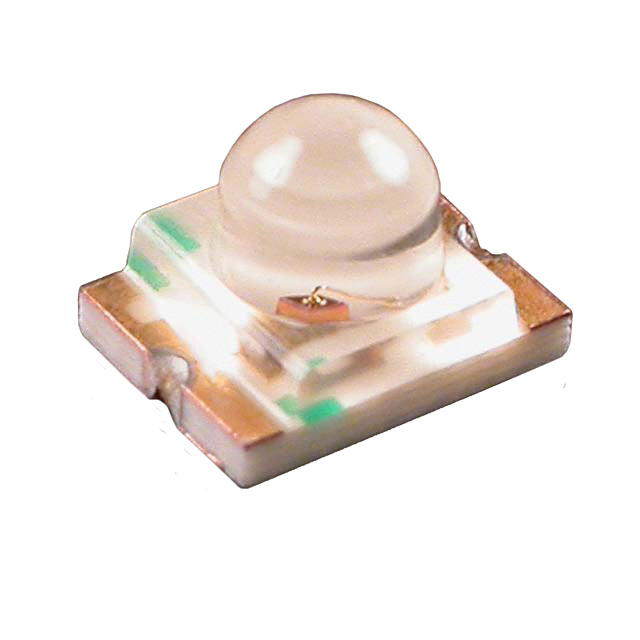

The APD3224PBC/A-F01 is a single-color blue surface-mount LED from Kingbright, housed in a 1210 (3225 metric) package with dimensions of 3.2 mm length and 2.4 mm height. It features a water clear dome lens and emits at a wavelength of 468 nm. The component operates with a forward current of 2 mA and a forward voltage of 2 V. It delivers a light intensity of 380 mcd with a viewing angle of 20 degrees. Power rating is 75 mW per color, and it functions within a temperature range of -40 C to +85 C.

LED Indication - Discrete Feature Summary

• Single-color blue emission with water clear dome lens for focused visibility
• Low power consumption design suitable for battery-operated devices
• Moisture sensitivity level 3 compliance for standard reflow soldering processes

LED Indication - Discrete Applications

• Board status indicators on electronic circuitry
• Backlighting applications requiring compact form factors
• General purpose visual signaling in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix matches the required lens type and binning specifications. Confirm moisture sensitivity handling procedures are followed during storage and assembly. Ensure compatibility with standard SMT reflow profiles. Check RoHS compliance documentation for regulatory requirements. Validate package quantity against production needs.

LED Indication - Discrete Selection Notes

Select this component when a compact blue indicator is required for space-constrained designs. The 1210 footprint offers a balance between size and brightness. Consider the 20-degree viewing angle for directional indication needs. Evaluate the 2 mA drive current for low-power system constraints. Compare thermal performance against ambient operating conditions.

LED Indication - Discrete Part Context

This part belongs to Kingbright's HeliColour series of surface-mount LEDs. It utilizes standard chip LED technology optimized for automated assembly. The 1210 package is widely used in PCB layouts for general indication. It represents a common solution for blue signal lighting in modern electronics manufacturing.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout and dimensional tolerances before considering alternative manufacturers. Ensure spectral characteristics match application requirements if substituting.
