APGA1602SEC/E/KA

$0.39

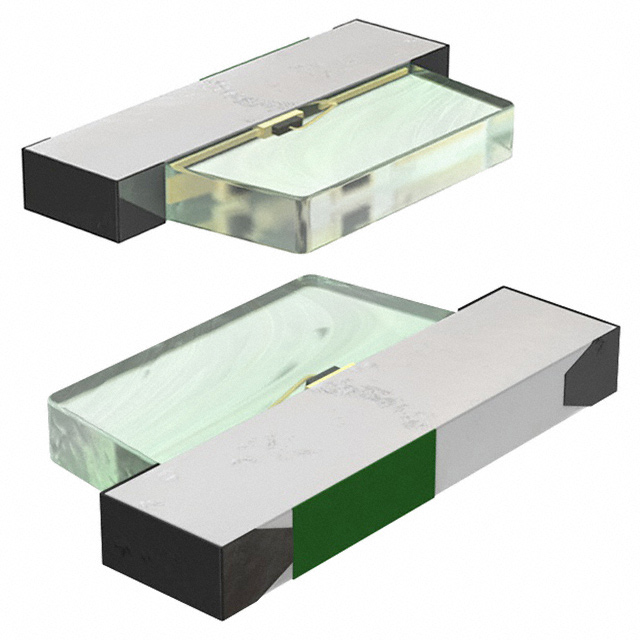

Description：LED RED CLEAR CHIP SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:27345e4c371e Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APGA1602SEC/E/KA is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED RED CLEAR CHIP SMD R/A. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APGA1602SEC/E/KA

Description：LED RED CLEAR CHIP SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：120mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.60mm x 0.90mm
Voltage - Forward (Vf) (Typ)：2.05V
Current - Test：20mA
Viewing Angle：150°, 120°
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：624nm
Wavelength - Peak：632nm
Features：-
Package / Case：0603 (1608 Metric)
Supplier Device Package：Chip LED
Size / Dimension：1.60mm L x 0.90mm W
Height (Max)：0.30mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APGA1602SEC/E/KA

APGA1602SEC/E/KA

LED Indication - Discrete Overview

The APGA1602SEC/E/KA is a single-color surface-mount LED from Kingbright, designed for compact electronic assemblies. It features a red light emission with a peak wavelength of 624 nm and a nominal luminous intensity of 200 mcd. The device operates at a forward current of 20 mA with a forward voltage of 2.05 V, resulting in a power rating of 48 mW. Housed in a 0603 (1.6 x 0.2 mm) rectangular package with a water-clear lens, it supports a wide operating temperature range from -40°C to +85°C.

LED Indication - Discrete Feature Summary

Emits red light with a 624 nm peak wavelength
Utilizes a 0603 surface-mount package for space efficiency
Features a water-clear lens for optimal light transmission

LED Indication - Discrete Applications

Indicator lights for consumer electronics
Status indicators on portable devices
Backlighting applications requiring red illumination

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact optical and electrical characteristics. Ensure that the component meets RoHS compliance requirements for your target market. Confirm moisture sensitivity level and reflow soldering profile specifications prior to assembly integration.

LED Indication - Discrete Selection Notes

Select this component when a low-profile 0603 footprint is required for red indication. Consider the 200 mcd intensity and 2.05 V forward voltage for circuit design compatibility. Evaluate the 20 mA forward current requirement against available drive capabilities in the target application system.

LED Indication - Discrete Part Context

This part belongs to the Minikin-Air series by Kingbright, which focuses on ultra-compact SMD LEDs. The 0603 form factor allows for high-density PCB layouts compared to larger packages. It serves as a specialized indicator solution within the broader single-color LED product line.
