Product Detailed Parameters
- Description：LED GREEN/RED CLEAR 0603 SMD
- Series：High Temp
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green, Red
- Configuration：-
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：115mcd Green, 27mcd Red
- Lens Style：Rectangle with Flat Top
- Lens Size：1.60mm x 0.80mm
- Voltage - Forward (Vf) (Typ)：2.65V Green, 1.75V Red
- Current - Test：2mA
- Viewing Angle：130°
- Mounting Type：Surface Mount
- Wavelength - Dominant：533nm Green, 630nm Red
- Wavelength - Peak：515nm Green, 645nm Red
- Features：-
- Package / Case：0603 (1608 Metric)
- Supplier Device Package：603
- Size / Dimension：1.60mm L x 0.60mm W
- Height (Max)：0.60mm
- Grade：-
- Qualification：-
Download product information
Overview

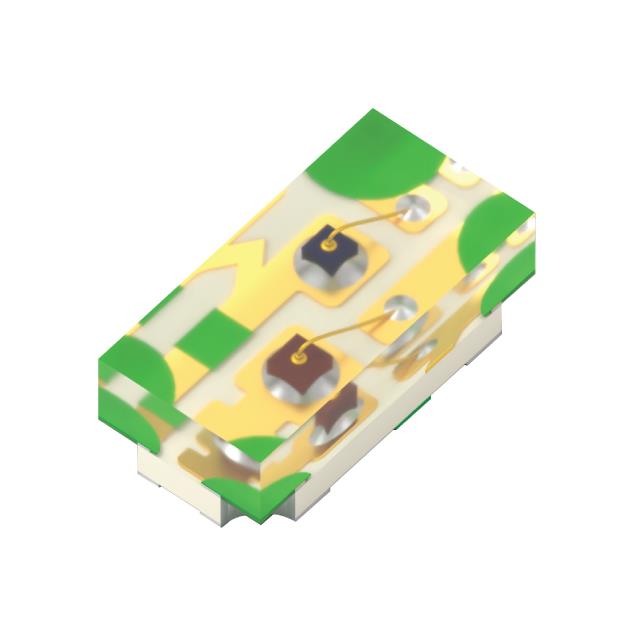

The APHB1608LG3R2C-AMT is a bi-color surface-mount LED from Kingbright, housed in a 0603 (1.6mm x 0.8mm) rectangular package with a colorless lens. It emits green light at 515 nm and red light at 645 nm. The component operates with a forward current of 2 mA, featuring typical forward voltages of 1.75 V for the green segment and 2.65 V for the red segment. Power ratings are specified at 75 mW for green and 82 mW for red. It offers a viewing angle of 130 degrees and is designed for low-current, high-temperature applications.
Feature Summary
- Dual-chip bi-color configuration enabling simultaneous or independent green and red illumination within a compact footprint.
- Optimized for low-current operation to support energy-efficient circuit designs.
- Engineered for high-temperature stability to maintain performance in demanding thermal environments.
Applications
- Status indication on densely packed electronic circuit boards
- Low-power visual signaling in consumer electronics
- High-temperature industrial control panel indicators
Procurement Notes
Verify the specific suffix 'AMT' against the manufacturer's official datasheet to confirm packaging details and tape-and-reel specifications. Ensure compatibility with RoHS directives if required by your assembly process. Cross-reference the exact part number with Kingbright's current product announcements to confirm availability status and any recent design revisions.
Selection Notes
Select this component when space constraints require a 0603 form factor but distinct green and red status indication is necessary. The low 2 mA forward current makes it suitable for battery-operated devices where power conservation is critical. Verify that the system voltage can accommodate the combined forward voltage requirements without excessive current limiting components.
Part Context
This part belongs to Kingbright's APHB1608 series of second-generation SMD LEDs. This generation emphasizes improved material durability and electrical reliability compared to previous iterations. The series is designed to meet the demands of dense system designs requiring robust optical components in small packages.
Replacement Considerations
Direct substitutes must match the 0603 package dimensions, 515nm/645nm wavelength pair, and 2mA operating current. Verify pinout compatibility and forward voltage tolerances. Consult Kingbright's official substitution guide for validated alternatives within the same family.
