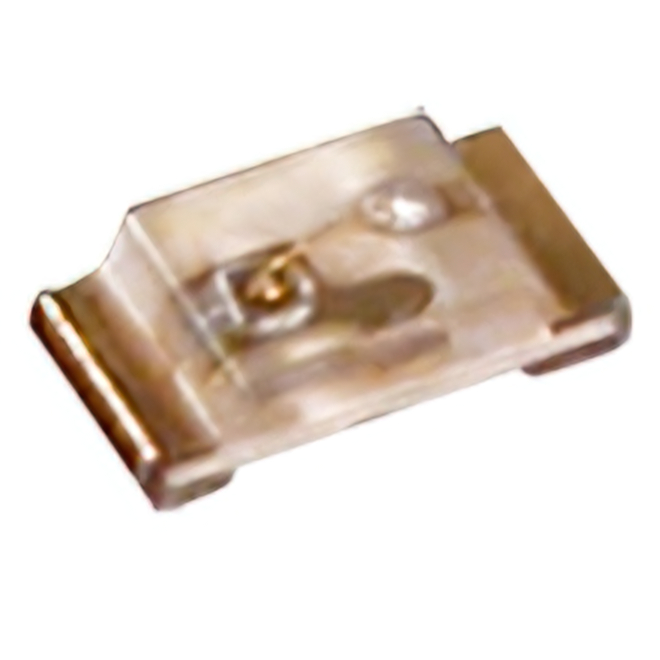

APHM1608SGCT

$0.21

Description：1.6X0.8MM (0603) GREEN SMD LED
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5a824ae516d0 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APHM1608SGCT is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is 1.6X0.8MM (0603) GREEN SMD LED. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APHM1608SGCT

Description：1.6X0.8MM (0603) GREEN SMD LED
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：12mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ)：2.2V
Current - Test：20mA
Viewing Angle：150°
Mounting Type：Surface Mount
Wavelength - Dominant：568nm
Wavelength - Peak：565nm
Features：-
Package / Case：0603 (1608 Metric)
Supplier Device Package：603
Size / Dimension：1.60mm L x 0.80mm W
Height (Max)：0.45mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APHM1608SGCT

APHM1608SGCT

LED Indication - Discrete Overview

The APHM1608SGCT is a single-color green surface-mount LED manufactured by Kingbright. It features a rectangular lens with water-clear transparency and operates at a peak wavelength of 568 nm. The component delivers an optical intensity of 25 mcd with a viewing angle of 120 degrees. Electrical characteristics include a forward voltage of 2.2 V and a maximum forward current of 20 mA, resulting in a power rating of 62.5 mW. Physical dimensions are 1.6 mm in length, 0.8 mm in width, and 0.7 mm in height.

LED Indication - Discrete Feature Summary

Emits green light at a 568 nm peak wavelength
Features a rectangular water-clear lens for directional visibility
Supports standard SMD/SMT surface mount installation

LED Indication - Discrete Applications

Electronic device status indicators
Panel board illumination
Consumer electronics signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against official Kingbright documentation to ensure compatibility with required electrical parameters and mechanical tolerances. Confirm moisture sensitivity handling requirements prior to assembly. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and traceability. Ensure compliance with RoHS directives if applicable to the target market regulations.

LED Indication - Discrete Selection Notes

Select this component when a compact green indicator with a 120-degree viewing angle is required. The 0603 metric footprint suits space-constrained designs. Consider the 20 mA forward current limit and 2.2 V forward voltage drop for circuit design. Verify that the rectangular lens shape aligns with optical distribution needs compared to dome-style alternatives.

LED Indication - Discrete Part Context

This part belongs to Kingbright's single-color LED portfolio, specifically within the green emission category. It utilizes a standard 0603 (1608 metric) package size common in surface-mount technology. The product line emphasizes compact form factors suitable for modern electronic assemblies requiring reliable visual feedback components.
