Product Detailed Parameters

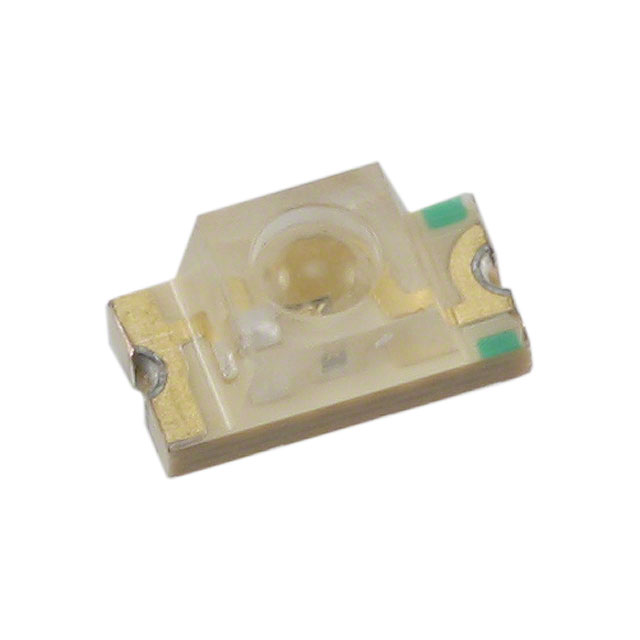

- Description：LED RED CLEAR CHIP SMD
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：50mcd
- Lens Style：Round with Flat Top
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：1.85V
- Current - Test：20mA
- Viewing Angle：70°
- Mounting Type：Surface Mount
- Wavelength - Dominant：640nm
- Wavelength - Peak：655nm
- Features：-
- Package / Case：2-SMD, No Lead
- Supplier Device Package：Chip LED
- Size / Dimension：3.00mm L x 1.50mm W
- Height (Max)：1.40mm
- Grade：-
- Qualification：-
Download product information
Overview
The Kingbright APL3015SRCPRV-F01 is a single-color surface-mount LED emitting red light at a peak wavelength of 640 nm. It features a water-clear rectangular lens with dimensions of 2 mm x 1.5 mm and a total height of 1.4 mm, housed in a standard 1206 (3216 metric) package. The component operates with a forward current of 20 mA and a forward voltage of 1.85 V, dissipating up to 75 mW of power. It delivers a luminous intensity of 150 mcd and functions within a temperature range of -40°C to +85°C.
Feature Summary
- Emits red light with a 640 nm peak wavelength
- Utilizes a water-clear rectangular lens for optical clarity
- Designed for surface-mount technology installation
Applications
- Panel indicator lighting
- Equipment status signaling
- Consumer electronics illumination
Procurement Notes
Verify the specific suffix F01 against manufacturer documentation to confirm packaging configuration. Note that this component is listed as obsolete or end-of-life by major distributors. Confirm availability through authorized channels or secondary markets, as standard supply chains may not support active procurement. Check RoHS compliance details directly from the datasheet before integration.
Selection Notes
Select this component when a standard red SMD LED in a 1206 footprint is required for low-power indication. Ensure the circuit design accommodates the 1.85 V forward voltage drop at 20 mA. Consider the 150 mcd intensity sufficient for visible status indication in ambient lighting conditions. Verify thermal management capabilities given the 75 mW power rating and operating temperature limits.
Part Context
This part belongs to Kingbright's APL series of single-color surface-mount LEDs. The series offers various colors and lens types in standardized packages like 1206. The APL3015SRCPRV-F01 specifically addresses applications needing compact red indicators with clear lens optics for precise light emission directionality.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided data. As the component is marked as obsolete, engineers should consult Kingbright for current equivalent recommendations or evaluate alternative single-color SMD LEDs with matching 1206 footprints and similar electrical characteristics.
