APT2012PYW

$0.23

Description：2.0X1.2MM,YEL SMD LED
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:41c9e506adbb Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

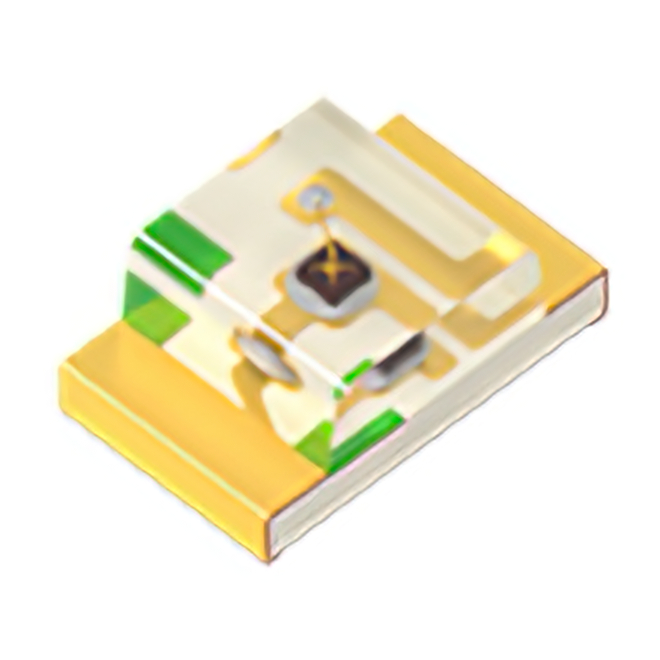

APT2012PYW is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is 2.0X1.2MM,YEL SMD LED. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APT2012PYW

Description：2.0X1.2MM,YEL SMD LED
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：12mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.30mm x 1.25mm
Voltage - Forward (Vf) (Typ)：2.2V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：585nm
Wavelength - Peak：565nm
Features：-
Package / Case：2-SMD, No Lead
Supplier Device Package：-
Size / Dimension：2.00mm L x 0.75mm W
Height (Max)：1.35mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APT2012PYW

APT2012PYW

LED Indication - Discrete Overview

The Kingbright APT2012PYW is a surface-mount single-color yellow LED in the 0805 (2012 metric) package. It features a clear lens and emits light at a peak wavelength of 590 nm with a typical forward voltage of 2.1 V. The component provides an optical intensity of 40 mcd at a test current of 20 mA. It operates within a temperature range of -40°C to +85°C and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

Yellow emission with clear rectangular lens
Surface-mount 0805 form factor
Wide operating temperature range

LED Indication - Discrete Applications

Panel indicator lights
Status indication on electronic boards
Consumer device signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix against the manufacturer datasheet to confirm lens clarity and binning. Ensure compatibility with standard reflow soldering profiles for 0805 packages. Confirm RoHS3 compliance status for environmental regulations. Check moisture sensitivity levels for storage handling requirements prior to assembly.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a compact yellow indicator with moderate brightness. The 0805 footprint suits high-density PCB layouts. Consider the 2.1 V forward voltage drop when designing series resistor circuits. Verify that the 40 mcd intensity meets visibility requirements for the intended enclosure or panel design.

LED Indication - Discrete Part Context

This part belongs to Kingbright's general-purpose SMD LED portfolio, utilizing the standard 2012 metric case size. It serves as a common solution for basic visual feedback in consumer electronics. The product line emphasizes reliability and consistent color performance across manufacturing batches.
