APTC90DAM60T1G

Description：MOSFET N-CH 900V 59A SP1
Series：CoolMOS™
Mfr：Microsemi Corporation
Package：Tray

SKU:67fd00e55ab2 Category: Single FETs, MOSFETs Brand: Microsemi Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APTC90DAM60T1G is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Microsemi Corporation. Its product description is MOSFET N-CH 900V 59A SP1. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for APTC90DAM60T1G

Description：MOSFET N-CH 900V 59A SP1
Series：CoolMOS™
Mfr：Microsemi Corporation
Package：Tray
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：900 V
Current - Continuous Drain (Id) @ 25°C：59A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：60mOhm @ 52A, 10V
Vgs(th) (Max) @ Id：3.5V @ 6mA
Gate Charge (Qg) (Max) @ Vgs：540 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：13600 pF @ 100 V
FET Feature：-
Power Dissipation (Max)：462W (Tc)
Operating Temperature：-40°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Chassis Mount
Supplier Device Package：SP1
Package / Case：SP1

Single FETs, MOSFETs datasheet and documents for APTC90DAM60T1G

APTC90DAM60T1G

Single FETs, MOSFETs Overview

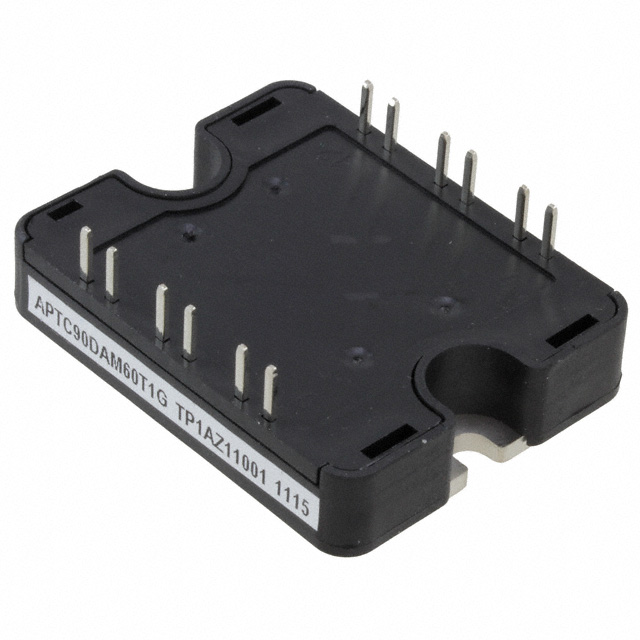

The APTC90DAM60T1G is a Super Junction MOSFET power module manufactured by Microsemi Corporation. It features an N-channel configuration with a drain-source voltage rating of 900 V and a continuous drain current of 59 A at case temperature. The device is housed in an SP1 chassis mount package, designed for high-power applications requiring robust thermal management and efficient switching performance.

Single FETs, MOSFETs Feature Summary

Super Junction technology for enhanced efficiency
Chassis mount packaging for secure installation
High voltage and current handling capabilities

Single FETs, MOSFETs Applications

Boost chopper circuits
High-frequency power conversion
Industrial motor drives

Single FETs, MOSFETs Procurement Notes

Verify the exact revision level and datasheet version before procurement, as component specifications may evolve. Confirm compatibility with existing thermal interface materials and mounting hardware. Check for end-of-life status or obsolescence notices from the manufacturer to ensure long-term supply chain stability.

Single FETs, MOSFETs Selection Notes

Select this module when designing systems requiring 900 V blocking capability with moderate current levels around 59 A. Ensure the application supports chassis mounting constraints and provides adequate heat sinking. Evaluate gate drive requirements against the specific threshold and charge characteristics defined in the official electrical parameters.

Single FETs, MOSFETs Part Context

This component belongs to Microsemi's portfolio of high-voltage discrete semiconductors and power modules. It utilizes Super Junction MOSFET technology, which offers improved figure of merit compared to conventional planar structures. The SP1 package is standard for single-device modules in this series.

Single FETs, MOSFETs Replacement Considerations

Consult official substitution guides for equivalent Super Junction MOSFET modules with matching 900 V ratings and SP1 footprints. Verify pinout compatibility and thermal resistance values before swapping.
