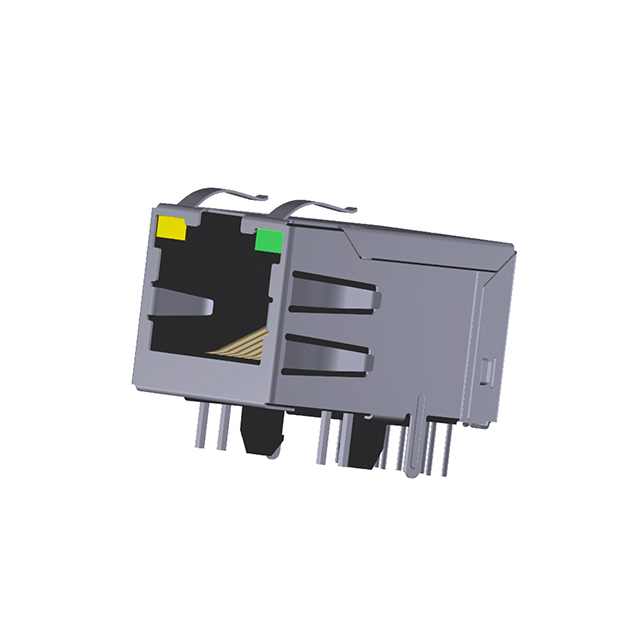

ARJM11C7-001-JA-CW2

ARJM11C7-001-JA-CW2 is listed in the Modular/Ethernet Connector (RJ45) Jacks With Magnetics range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is CONN JACK 1PORT PCB. Review the specifications below when checking this part for your BOM.

Modular/Ethernet Connector (RJ45) Jacks With Magnetics specifications for ARJM11C7-001-JA-CW2

• Description：CONN JACK 1PORT PCB
• Series：ARJM11
• Mfr：Abracon LLC
• Package：Tray
• Connector Type：RJ45
• Applications：10/100 Base-T, AutoMDIX
• Mounting Type：Through Hole
• Orientation：90° Angle (Right)
• Termination：Solder
• Height Above Board：0.543" (13.80mm)
• LED Color：Green, Yellow - Green
• Number of Cores per Jack：4
• Shielding：Shielded, EMI Finger
• Features：Board Lock
• Tab Direction：Up
• Contact Material：-
• Contact Finish：Gold
• Operating Temperature：0°C ~ 70°C
• Number of Ports：1
• Number of Rows：1

Modular/Ethernet Connector (RJ45) Jacks With Magnetics datasheet and documents for ARJM11C7-001-JA-CW2
