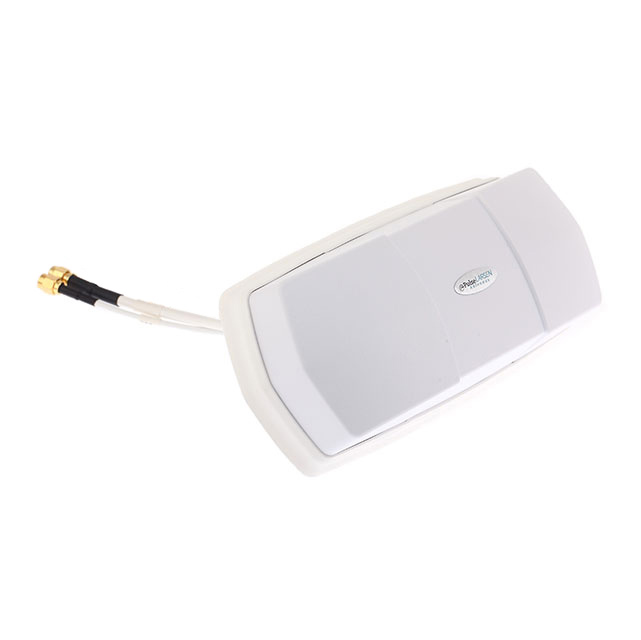

ARM21012DM

$97.09

Description：RF ANT 829MHZ/1.582GHZ MODULE
Series：ARMADILLO
Mfr：Pulse Electronics
Package：Bulk,Bulk

SKU:7f7d4d9cb89f Category: RF Antennas Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ARM21012DM is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is RF ANT 829MHZ/1.582GHZ MODULE. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ARM21012DM

Description：RF ANT 829MHZ/1.582GHZ MODULE
Series：ARMADILLO
Mfr：Pulse Electronics
Package：Bulk,Bulk
RF Family/Standard：-
Frequency Group：Wide Band
Frequency (Center/Band)：829MHz, 1.582GHz, 2.2GHz
Frequency Range：698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz
Antenna Type：Module
Number of Bands：2
VSWR：2, 2.5
Return Loss：-
Gain：4.6dBi, 4.9dBi, 5.3dBi, 6.6dBi
Features：Cable - 5.18m, LNA
Termination：SMA Male (2)
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Adhesive, Magnetic
Height (Max)：1.772" (45.00mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for ARM21012DM

ARM21012DM

Antennas RF Overview

The ARM21012DM is a vehicular RF antenna module manufactured by Pulse Electronics. It operates across three frequency bands: 960MHz, 2690MHz, and 5925MHz. The module provides a gain of 6.6dBi and utilizes an SMA male connector for interface. Designed for vehicle installation, it features adhesive and magnetic mounting options. The unit is rated IP67 for environmental protection and includes a low-noise amplifier (LNA) with a cable length of 5.18m.

Antennas RF Feature Summary

Triple-band operation supporting 960MHz, 2690MHz, and 5925MHz frequencies
Integrated low-noise amplifier (LNA) for signal enhancement
IP67 rated enclosure ensuring robust environmental sealing
Versatile mounting capabilities using both adhesive and magnetic methods

Antennas RF Applications

Vehicular communication systems
High-power motor control cabinets
Mobile data transmission units
Rugged outdoor multi-band installations

Antennas RF Procurement Notes

Verify the specific frequency band configuration and connector type against project requirements before ordering. Confirm that the IP67 rating meets the operational environment standards. Ensure the included LNA specifications align with system sensitivity needs. Check for any regional compliance certifications required for vehicular use.

Antennas RF Selection Notes

Select this model for applications requiring simultaneous multi-band coverage in mobile environments. The integrated LNA makes it suitable for long cable runs where signal loss is a concern. Consider the physical dimensions and mounting constraints due to the adhesive and magnetic design. Compare performance metrics against single-band alternatives if only one frequency is needed.

Antennas RF Part Context

This component belongs to the Armadillo series of rugged outdoor antennas from Pulse Electronics. The series focuses on providing reliable connectivity in harsh conditions. The ARM21012DM specifically targets vehicular and industrial mobile applications requiring high durability and multi-frequency support.
