ARM32012AM

Antennas RF Overview

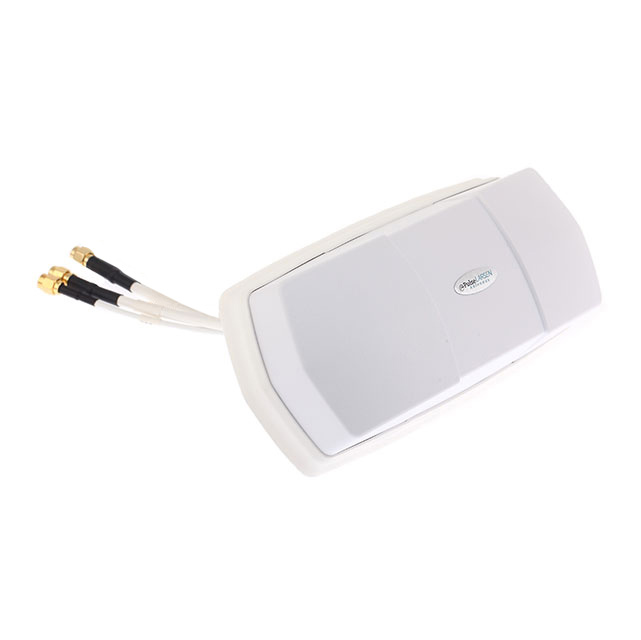

The ARM32012AM is a multi-band RF antenna module from the ARMADILLO series by Pulse Electronics. It operates across three frequency bands: 698MHz to 960MHz, 1.559GHz to 1.606GHz, and 1.71GHz to 2.69GHz. The unit features an adhesive installation type and includes three SMA male connectors with a cable length of 5.18m. Gain values range from 4.6dBi to 7.9dBi depending on the band. It offers IP67 ingress protection and supports GPS and LTE applications.

Antennas RF Feature Summary

• Multi-band capability supporting GPS and LTE frequencies
• Integrated Low Noise Amplifier (LNA) for signal enhancement
• IP67 rated environmental protection for durability
• Adhesive mounting design with pre-attached cables

Antennas RF Applications

• GPS navigation systems
• LTE mobile communication devices
• Wideband cellular infrastructure modules

Antennas RF Procurement Notes

Verify the specific gain requirements for each frequency band against your system design before ordering. Confirm that the adhesive mounting method is compatible with your enclosure material. Ensure the SMA male connector orientation matches your receiver interface. Check the 5.18m cable length constraint for your assembly layout. Validate IP67 sealing requirements if used in harsh environments.

Antennas RF Selection Notes

Select this model when integrated multi-band reception for GPS and LTE is required in a compact form factor. The built-in LNA makes it suitable for weak signal environments. Consider the adhesive installation if space constraints prevent traditional bracket mounting. Verify that the SMA connector type aligns with existing cabling infrastructure.

Antennas RF Part Context

This component belongs to the ARMADILLO series of RF antennas designed for mobile and navigation applications. It addresses the need for consolidated antenna solutions that reduce board space while maintaining performance across multiple wireless standards. The module integrates passive and active elements into a single packaged unit.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Pulse Electronics directly for cross-reference information or updated product line replacements.
