ARM52211MM

Antennas RF Overview

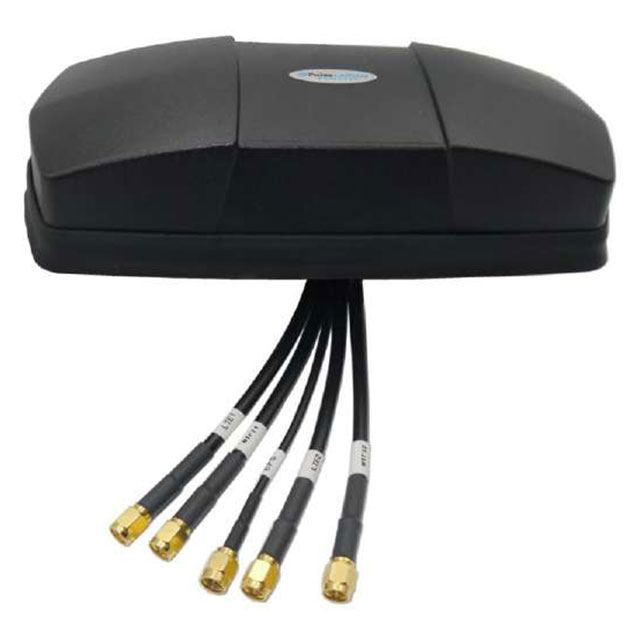

The ARM52211MM is a multi-band RF antenna module manufactured by Pulse Electronics, designed for GPS, LTE, and Wi-Fi applications. It features magnetic mounting and supports five frequency bands: 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, and 5.537GHz. The operational frequency ranges are 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, and 5.15GHz ~ 5.925GHz. Gain values are 4.6dBi, 5.1dBi, 4.9dBi, and 7.9dBi. Termination options include three SMA male connectors and two RP-SMA male connectors. The unit has a maximum height of 1.772 inches (45.00mm) and includes an LNA with a 5.18m cable.

Antennas RF Feature Summary

• Supports five distinct frequency bands for GPS, LTE, and Wi-Fi connectivity
• Features magnetic mounting type for flexible installation
• Includes integrated Low Noise Amplifier (LNA)
• Provides multiple connector termination options including SMA and RP-SMA

Antennas RF Applications

• GPS navigation systems
• LTE cellular communications
• Wi-Fi networking equipment

Antennas RF Procurement Notes

Verify the specific connector configuration required for your design, as this model offers both SMA male and RP-SMA male termination options. Confirm that the magnetic mounting style aligns with your assembly requirements. Ensure compatibility with the specified frequency bands and gain characteristics for your intended application environment.

Antennas RF Selection Notes

Select this model when a multi-band solution covering GPS, LTE, and Wi-Fi frequencies is required in a single module. The magnetic mounting provides ease of deployment without permanent fixation. Consider the included LNA and cable length if signal amplification and reach are critical factors for the system architecture.

Antennas RF Part Context

This component belongs to the ARMADILLO series of RF antennas from Pulse Electronics. It is categorized under broadband cellular, navigation, and WiFi standards. The product is currently listed as active and available for order, with standard packaging in bulk quantities.

Antennas RF Replacement Considerations

ARM52212DM is a similar variant within the same family. Verify if the direct/permanent mount style of the DM suffix meets your installation needs compared to the magnetic mount of the MM suffix.
