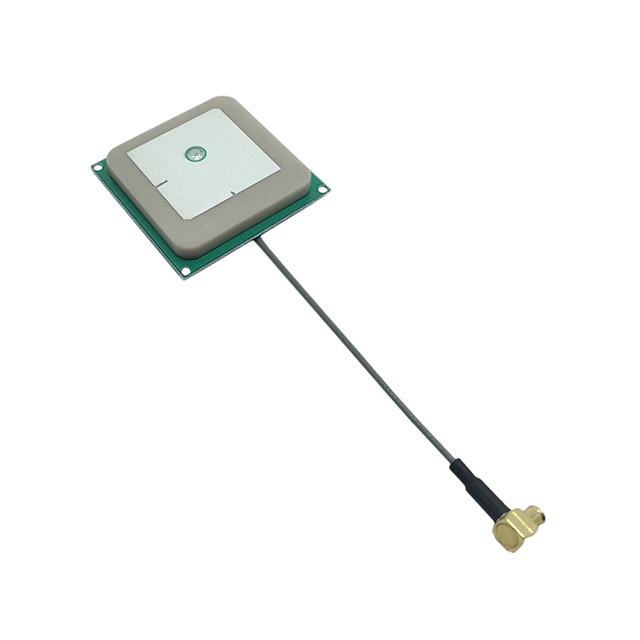

ARRKP4065-S915A

$39.19

Description：RF ANT 915MHZ CER PATCH IPEX
Series：ARRKP
Mfr：Abracon LLC
Package：Bulk

SKU:8249c0a17b24 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ARRKP4065-S915A is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 915MHZ CER PATCH IPEX. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ARRKP4065-S915A

Description：RF ANT 915MHZ CER PATCH IPEX
Series：ARRKP
Mfr：Abracon LLC
Package：Bulk
RF Family/Standard：-
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：915MHz
Frequency Range：902MHz ~ 928MHz
Antenna Type：Ceramic Patch
Number of Bands：1
VSWR：2
Return Loss：-
Gain：1.5dBi
Features：-
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.256" (6.50mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for ARRKP4065-S915A

ARRKP4065-S915A

Antennas RF Overview

The ARRKP4065-S915A is a low-profile ceramic patch antenna designed for UHF RFID applications. It operates within the 902MHz to 928MHz frequency range, providing a gain of 1.5 dB and a minimum axial ratio of 3dBi. The component features right-hand circular polarization (RHCP) and a 50 ohm impedance. Physical dimensions include a maximum height of 6.5mm and a length of 40mm. It utilizes an IPEX MHF1 connector with a cable length of approximately 110mm from the PCB edge. The unit supports a temperature range of -40°C to +85°C.

Antennas RF Feature Summary

Low-profile ceramic patch construction suitable for surface mount integration
Right-hand circular polarization for improved signal reliability in dynamic environments
Integrated IPEX MHF1 connector with short coaxial cable for flexible routing

Antennas RF Applications

UHF RFID reader systems
Wireless communication modules requiring RHCP antennas
Industrial IoT devices operating in the 902-928 MHz band

Antennas RF Procurement Notes

Verify the specific ordering suffix matches the required connector type and cable length. Confirm that the IPEX MHF1 interface aligns with the host board design. Ensure the physical footprint and height constraints fit the assembly requirements. Check compliance documentation such as ECCN classification for export purposes before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when right-hand circular polarization is required for the application. Consider the low-profile form factor if space constraints limit vertical clearance. Verify that the operating frequency range covers the target regulatory bands. Evaluate the integrated cable length against routing needs to minimize additional connectors or extensions.

Antennas RF Part Context

This component belongs to Abracon's family of RF antennas designed for compact wireless solutions. It serves as a specialized solution for UHF applications where standard linear polarization may not suffice. The product integrates the radiating element and connector into a single assembly to simplify system design and reduce assembly complexity.
