ASPI-8040HS-100M-T

Fixed Inductors Overview

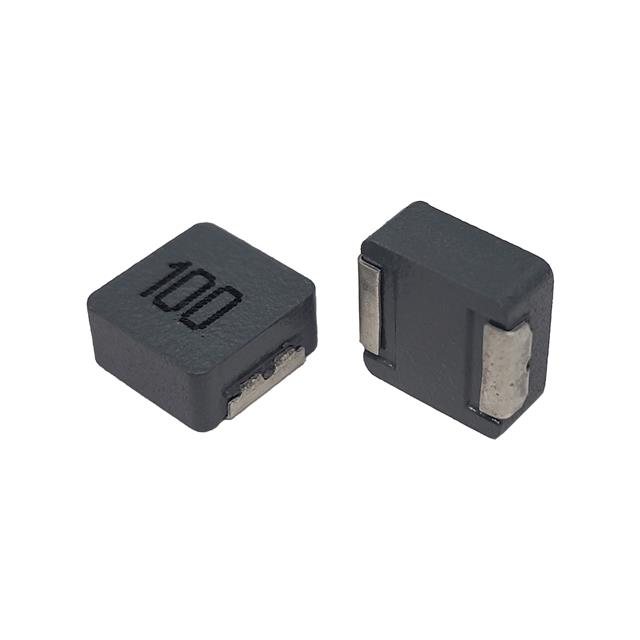

The ASPI-8040HS-100M-T is a molded surface-mount power inductor from Abracon LLC, featuring a metal core and wirewound construction. It provides an inductance of 10 µH with a ±20% tolerance, tested at 100 kHz. The component supports a maximum DC current rating of 5.2 A and exhibits a maximum DC resistance of 59.9 mΩ. Designed for operation between -40°C and +85°C, it measures 8.0 mm x 4.0 mm x 4.0 mm and complies with RoHS3 standards.

Fixed Inductors Feature Summary

• Utilizes a molded metal core structure to support high-current applications
• Provides shielding to minimize electromagnetic interference in compact layouts
• Engineered for switching frequencies ranging from 100 kHz to 2 MHz

Fixed Inductors Applications

• DC-DC converter circuits
• Power supply filtering stages
• General-purpose power electronics

Fixed Inductors Procurement Notes

Verify the specific manufacturer datasheet for the ASPI-8040HS series to confirm exact electrical tolerances and thermal characteristics prior to integration. Ensure that the selected packaging format aligns with automated assembly requirements. Cross-reference the component's moisture sensitivity level and storage conditions to maintain reliability during handling and soldering processes.

Fixed Inductors Selection Notes

Select this component when a shielded, high-current inductor is required for space-constrained designs. The 10 µH value and 5.2 A rating make it suitable for moderate-power conversion tasks. Consider the physical dimensions and thermal performance relative to the PCB layout and ambient operating conditions to ensure optimal efficiency and stability.

Fixed Inductors Part Context

This part belongs to the ASPI-8040HS series of molded SMD power inductors. These components are designed for robust performance in power management applications, offering a balance of high current handling and low profile. The series utilizes metal cores to achieve superior saturation characteristics compared to standard ferrite alternatives.

Fixed Inductors Replacement Considerations

Direct substitutes within the same series include ASPI-8040HS-1R0M-T, ASPI-8040HS-2R2M-T, and ASPI-8040HS-4R7M-T. Verify that alternative values meet the specific circuit requirements for inductance and current ratings before substitution.
