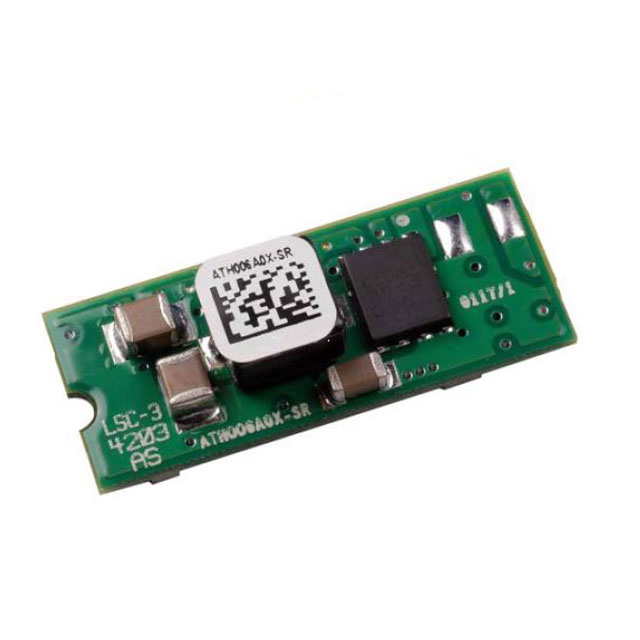

ATH006A0X-SR

ATH006A0X-SR is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 0.8-3.6V 21W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for ATH006A0X-SR

• Description：DC DC CONVERTER 0.8-3.6V 21W
• Series：Austin MicroLynx™ II
• Mfr：OmniOn Power™
• Package：Tape & Reel (TR)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：2.4V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：0.8 ~ 3.6V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：6A
• Power (Watts)：21 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：96%
• Mounting Type：Surface Mount
• Package / Case：6-SMD Module
• Size / Dimension：1.10" L x 0.45" W x 0.29" H (27.9mm x 11.4mm x 7.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-
